Product Advantages:
High efficiency: The bucket wheel machine has a strong loading capacity, which can load a large amount of materials at one time and transport them to the destination. Its loading and unloading speed is fast, can complete a large number of handling tasks in a short time, and significantly improve production efficiency. Wide range of applications: bucket wheel machine is not only suitable for large coal, ports and other logistics centers, but also suitable for construction sites, metallurgy, chemical industry and other industries handling and drying work. The adaptability is very wide.
Strong ability of continuous operation: bucket wheel machine adopts continuous operation mode without shutdown, which has greater advantages compared with traditional loading and unloading machinery.
High efficiency and reliability: bucket wheel machine has efficient operation capacity and transportation system, which can quickly complete a large number of material handling and stacking work.
Product Introduction

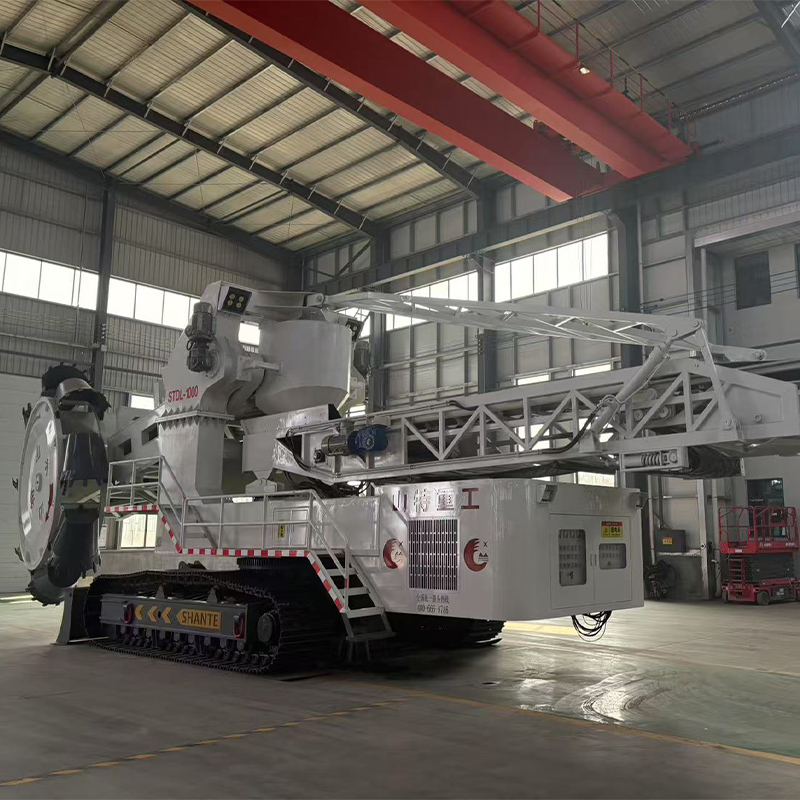

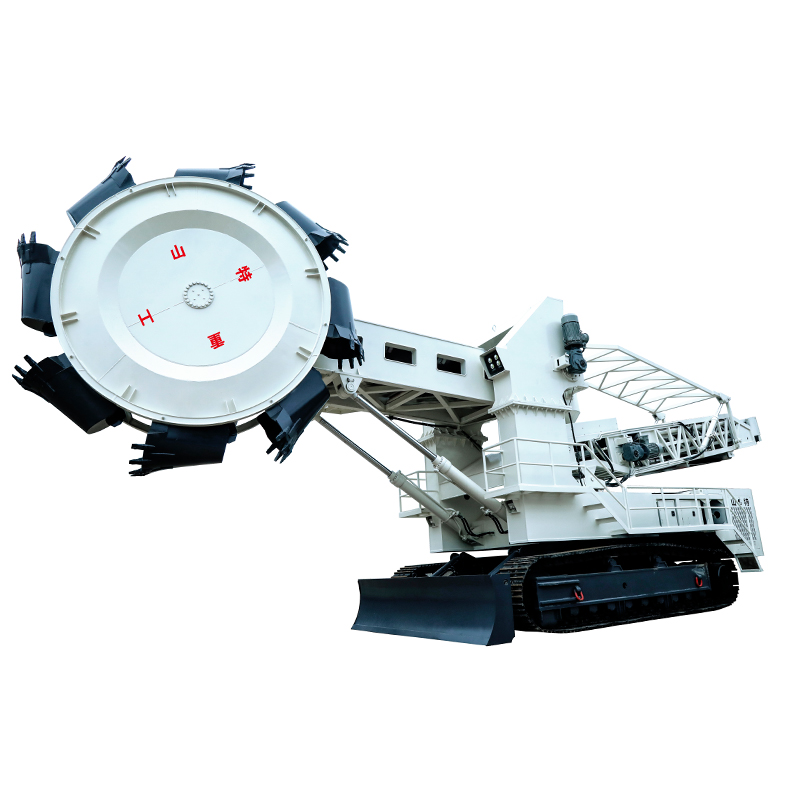

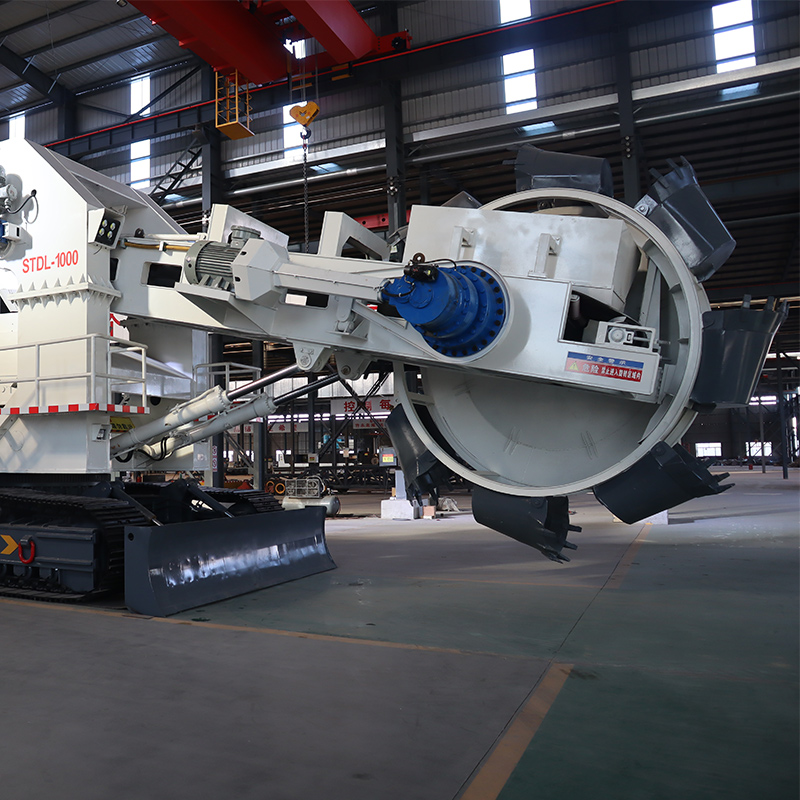

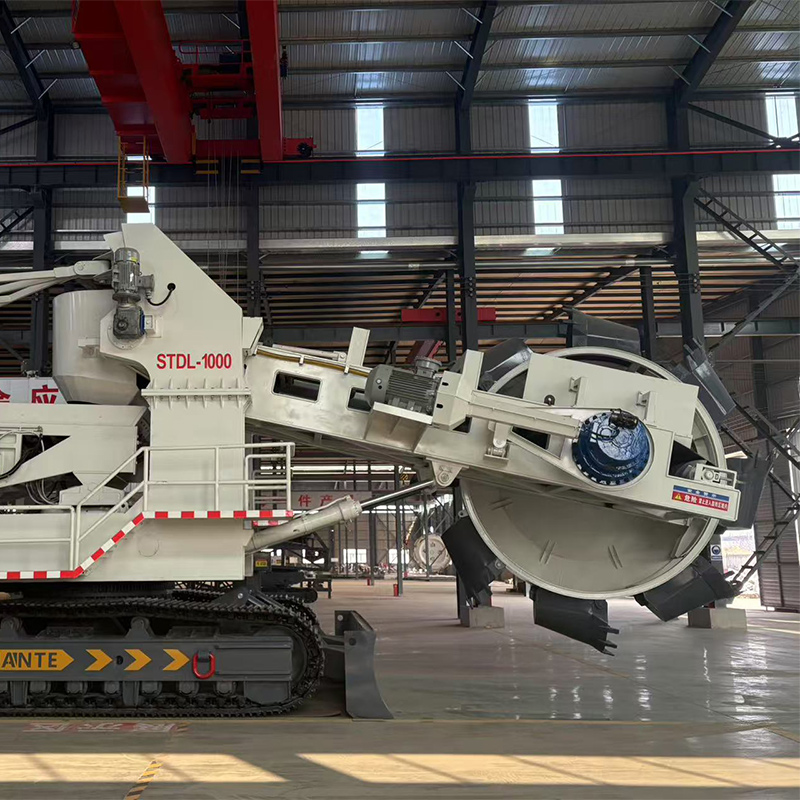

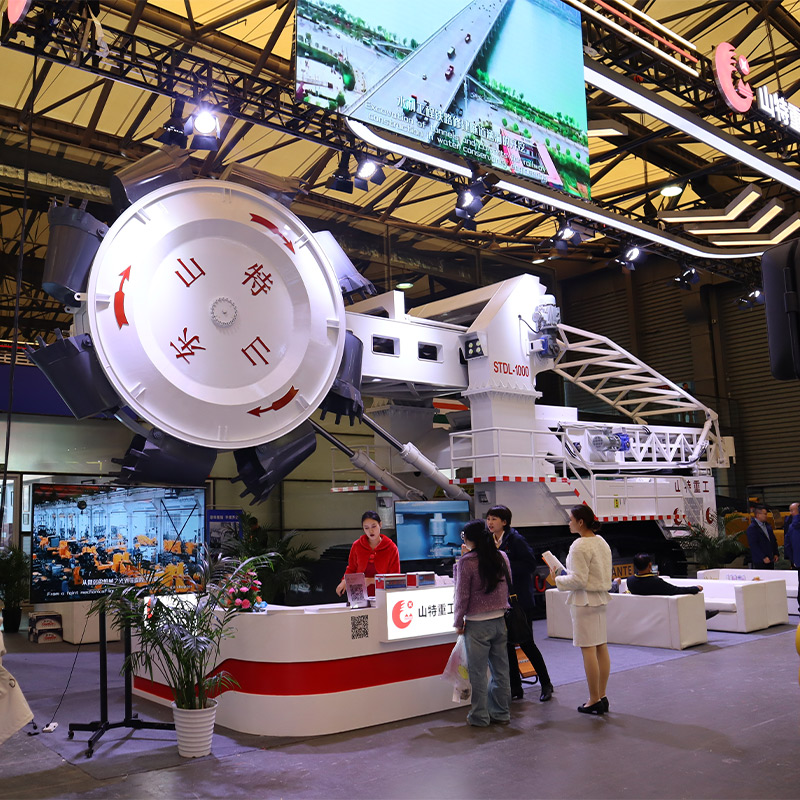

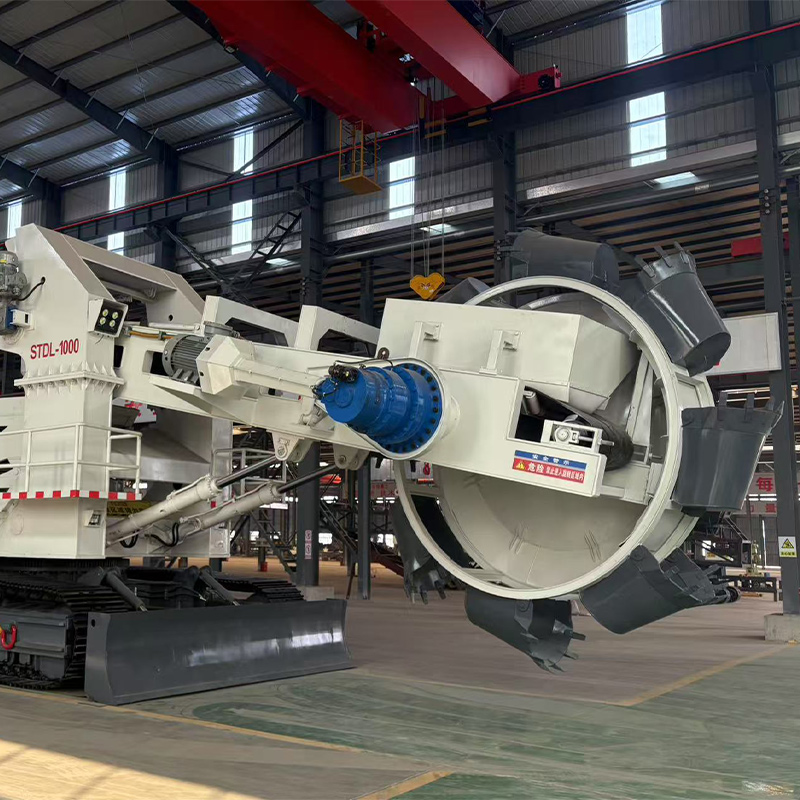

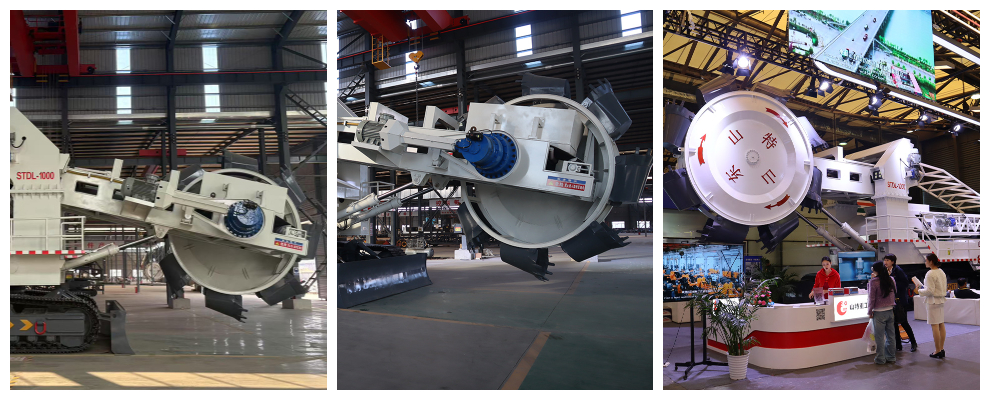

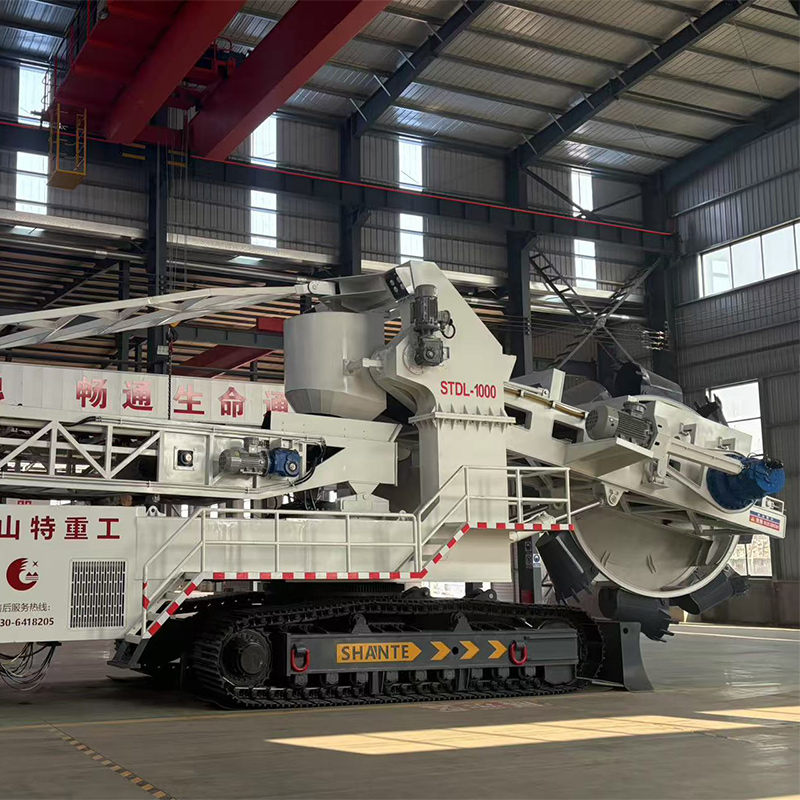

Customizable Bucket Wheel Stacker Reclaimer
High efficiency: The bucket wheel machine has a strong loading capacity, which can load a large amount of materials at one time and transport them to the destination. Its loading and unloading speed is fast, can complete a large number of handling tasks in a short time, and significantly improve production efficiency.
Wide range of applications: bucket wheel machine is not only suitable for large coal, ports and other logistics centers, but also suitable for construction sites, metallurgy, chemical industry and other industries handling and drying work.The adaptability is very wide.
Strong ability of continuous operation: bucket wheel machine adopts continuous operation mode without shutdown, which has greater advantages compared with traditional loading and unloading machinery.
High efficiency and reliability: Bucket wheel machine has efficient operation capacity and transportation system, which can quickly complete a large number of material handling and stacking work. The advanced control and detection system can monitor the state of the machine in real time and improve the reliability and safety of the equipment operation.
Convenient maintenance: The bucket wheel machine adopts modular design, which is easy to maintain and replace, and reduces the cost of operation and maintenance.
Simple operation: The operation method of the bucket wheel machine is simple. It is only necessary to carry out operation training, be familiar with the functions of each operation interface and button, and understand the working principle and workflow of the equipment. This does not require a high level of skill for the user if the safety specifications are set, it will be able to operate stably and efficiently.
Customizable Bucket Wheel Stacker Reclaimer | |||
Project | unit | Technical specifications | |
Overall dimensions - L×W×H | mm | 21090×4000×5888 | |
track size | mm | 5700×600 | |
Width of track shoe | mm | 600 | |
Track drive hydraulic motor | / | Hydraulic motor+reducer | |
Teack drive hydraulic pump | / | Danvers | |
Hydraulic pump drive motor | kw | 45 | |
Bucket wheel arm length | mm | 8280 | |
Length of discharge arm | mm | 8000+3000 | |
Rated output | m³/h | 900 | |
Bucket wheel diameter | mm | 3600 | |
Bucket wheel speed | r/min | 0-8 | |
Volume of each bucket wheel | m³ | 0.3 | |
Number of buckets | piece | 8 | |
Pitch angle of bucket wheel | ° | 25~-5 | |
Material density | t/m³ | 0.8~1.8 | |
Turning radius of bucket wheel | mm | 10036 | |
Width of reclaiming conveyer belt | mm | 1200 | |
Bucket wheel rotation angle | ° | ±180 | |
Width of discharge conveyer belt | mm | 1000 | |
Length of discharge conveyer belt | mm | 29524 | |
Rotation angle of discharge conveyer belt | ° | ±65 | |
Pitch angle of discharge conveyer belt | ° | 0-16 | |
Max stack height of discharge conveyer belt | mm | 6500 | |
Driving form of telescopic mechanism | / | Hydraulic cylinder | |
Overload protection mode of bucket wheel | / | Automatic | |
Matching motor power | Track travel drive | kW | 45 |
| Bucket wheel swing drive | kW | 75 | |
| Bucket wheel conveyer belt drive | kW | 15*2 | |
| Outfeed conveyer belt drive | kW | 15*2 | |
| Engine power | Track travel drive | kW | 105 |

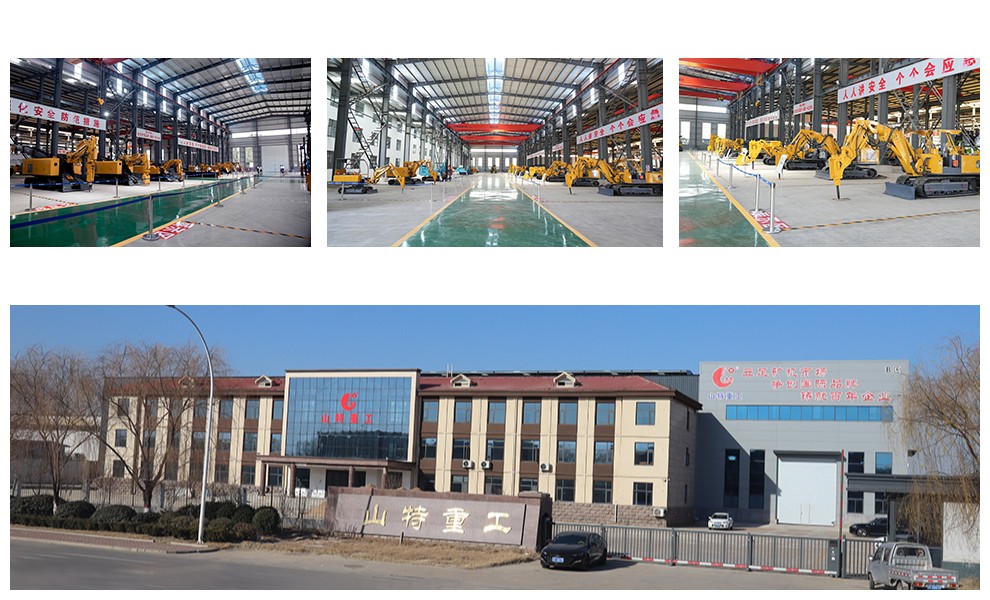

Company Strength:
Founded in February 2009, Shandong Shante Heavy Industry Machinery Co., Ltd is a natural person wholly-owned enterprise engaged in research and development, production, manufacturing and sales of mechanical equipment in coal mines, water conservancy projects and non-coal mines. With an area of over 10 hectares, the company has four series of more than 20 varieties, mainly including mining electric excavators, mining slag extractors, digging transfer machines, coal unloaders, milling excavators, etc. Its products are widely used in coal and non-coal mines, water conservancy projects, railway construction and tunnel, culvert excavation, loading and unloading, transferring and stacking of railway port cargo. The domestic market covers 28 provinces, municipalities and autonomous regions. The products are exported to Russia, South America, Southeast Asia and Africa, and have served more than 30 countries and regions around the world. After more than ten years of efforts and development, the company has won the fame and become the lead in the domestic mining machinery industry. It has successively won the Certificate of National High-tech Enterprise, the Certificate of Coal Safety and Mine Safety issued by the Anbiao National Center for Mining Products Safety Sign, and has been rated as the Provincial/Municipal Advanced Enterprise, the Enterprise that Honors Contract and Keeps Promise and Provincial Civilized Unit for many years.
In addition, as the New Material Technology Incubation Center, Teaching and Experiment Base and Post-doctoral Innovation Practice Base of Shandong University, the company also acts as the Municipal Enterprise Technology Center and Municipal Key Laboratory. The company has a solid foundation of innovation, leading innovation ability in the industry, excellent service, honesty and trustworthiness, excellent product quality, and hence the continuous improvement of enterprise popularity and reputation is well expected. The annual output of various mining machinery is 3000 sets.
