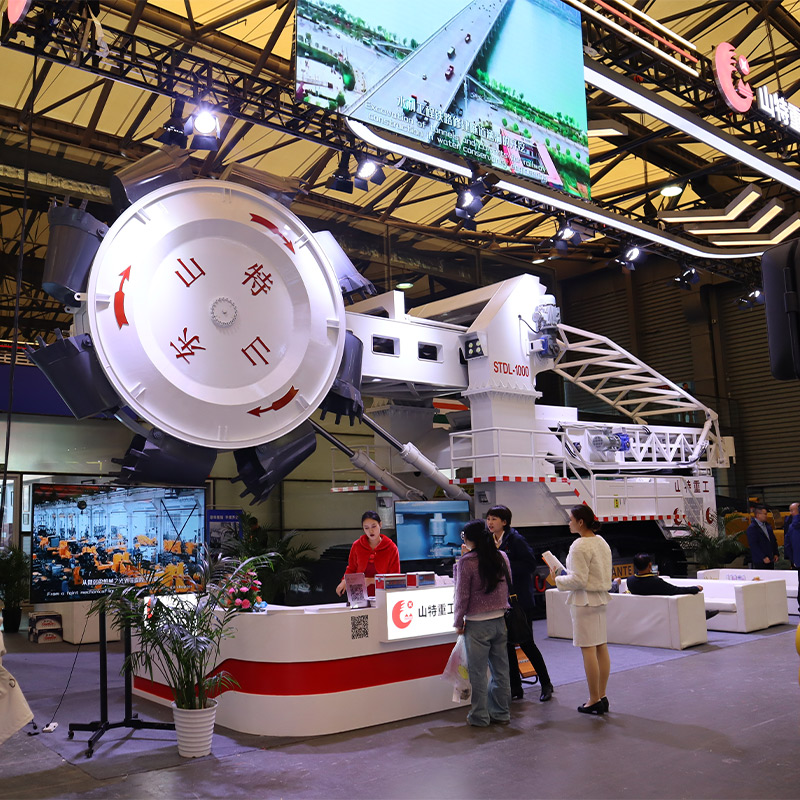

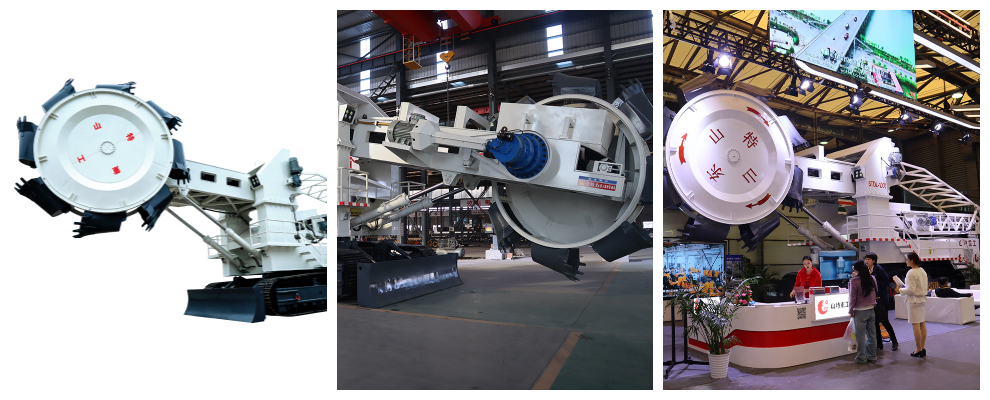

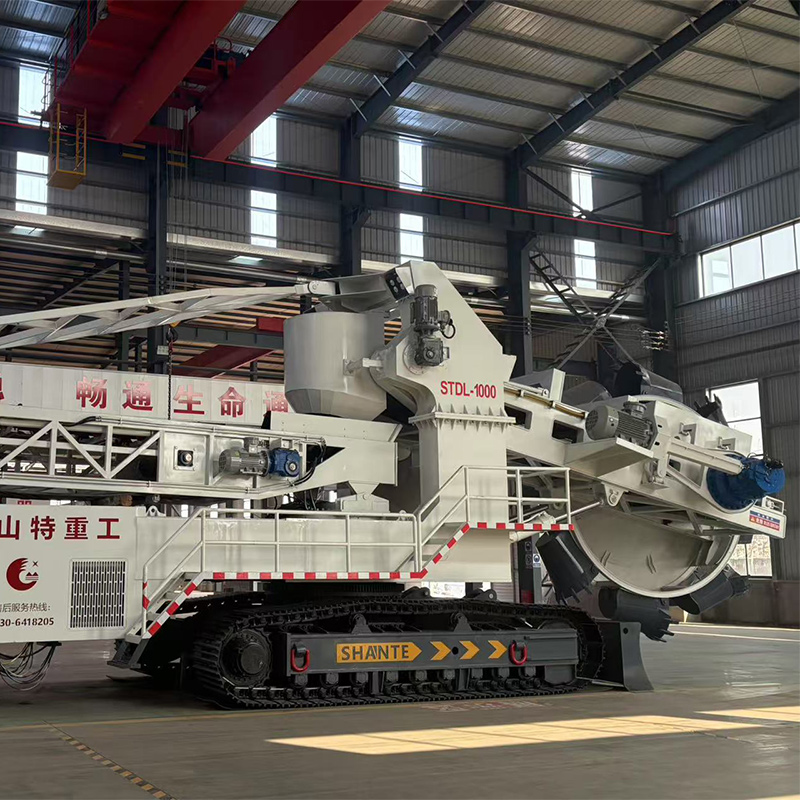

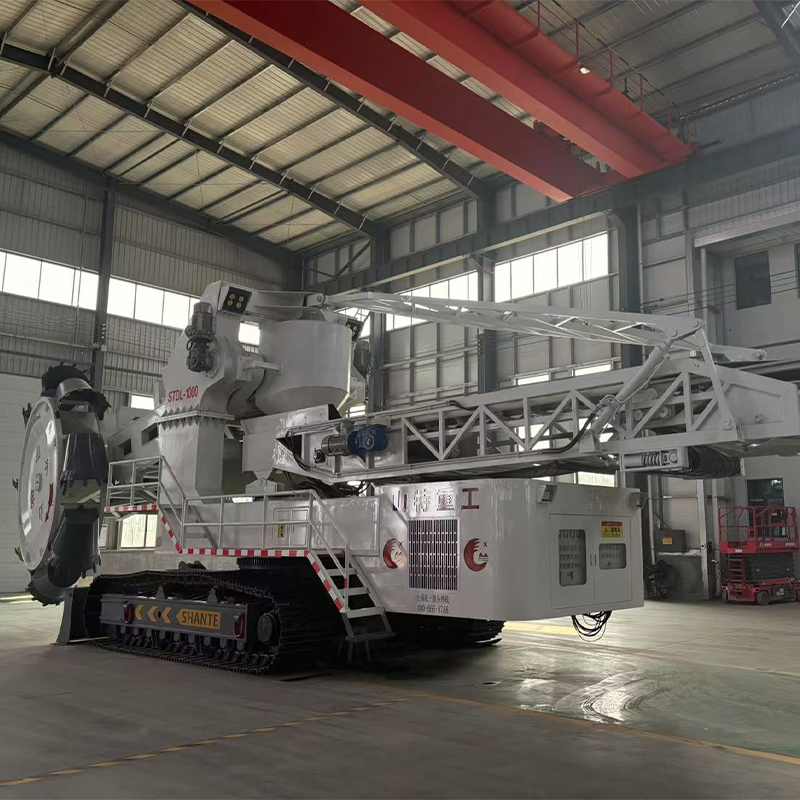

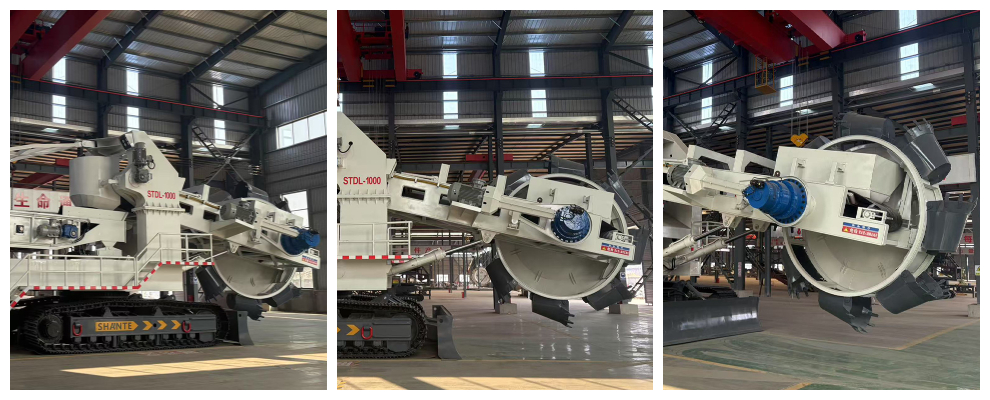

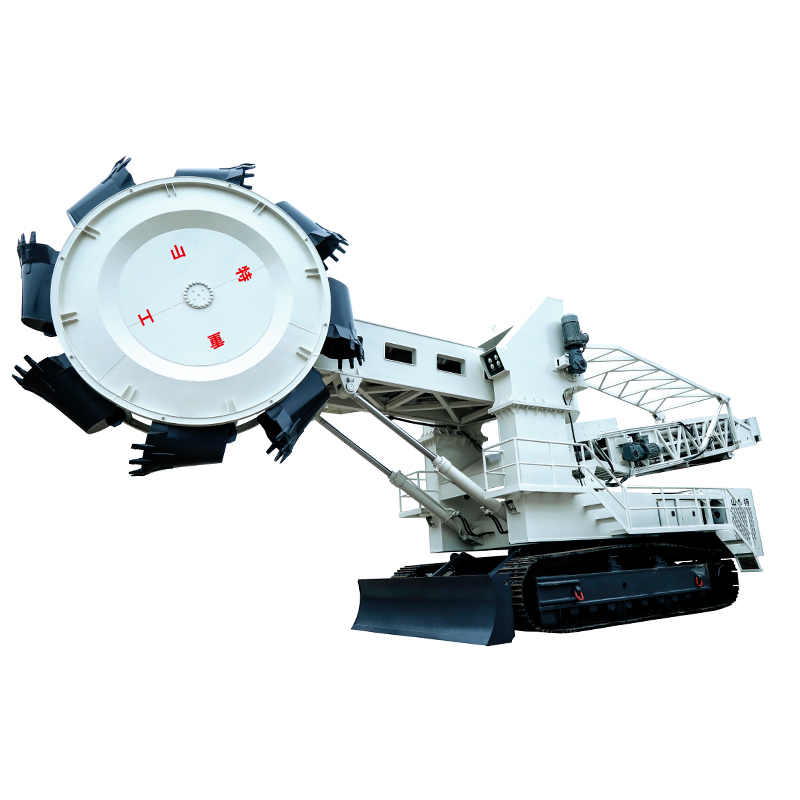

High Performance Port Bucket Wheel Excavator

Product Introduction:

High Performance Port Bucket Wheel Excavator:

Working Principle
During material excavation, the bucket-wheel excavator remains stationary. It relies on the compound motion generated by the rotation of its front-mounted bucket wheel and the slewing of the boom to continuously cut and load materials into the buckets. When the buckets ascend to a specific height during rotation, materials are discharged by gravity onto the receiving conveyor belt. These materials are then transferred via a hopper to the discharge conveyor belt, where they are loaded into trucks or other transport systems for delivery to designated locations. After completing excavation at one layer, the machine either moves forward or lowers its boom to begin excavating the next layer downward. The thickness of the excavated material layer is controlled by the machine’s forward travel distance or boom extension, while the excavation width is determined by the slewing speed. The excavator’s mobility is auxiliary, with continuous operation maintained by the bucket wheel for digging and conveyor belts for material transport.

Structural Features
The bucket-wheel excavator consists of six main systems: undercarriage, slewing system, working system, conveying system, electric drive system, and hydraulic system. Key characteristics include:

(1) Undercarriage System
Most modern bucket-wheel excavators employ a crawler-type undercarriage, with a minority using walking mechanisms. Medium and small excavators typically feature dual crawlers, while large-scale models utilize multi-crawler configurations (triple or quadruple crawlers) to reduce ground pressure.

(2) Slewing System
Comprising a rotating platform and slewing drive components, the platform houses power units, drive mechanisms, control systems, and the operator cabin. Equipped with a slewing bearing, the drive system enables 360° rotation of the platform around the vertical axis.

(3) Working System

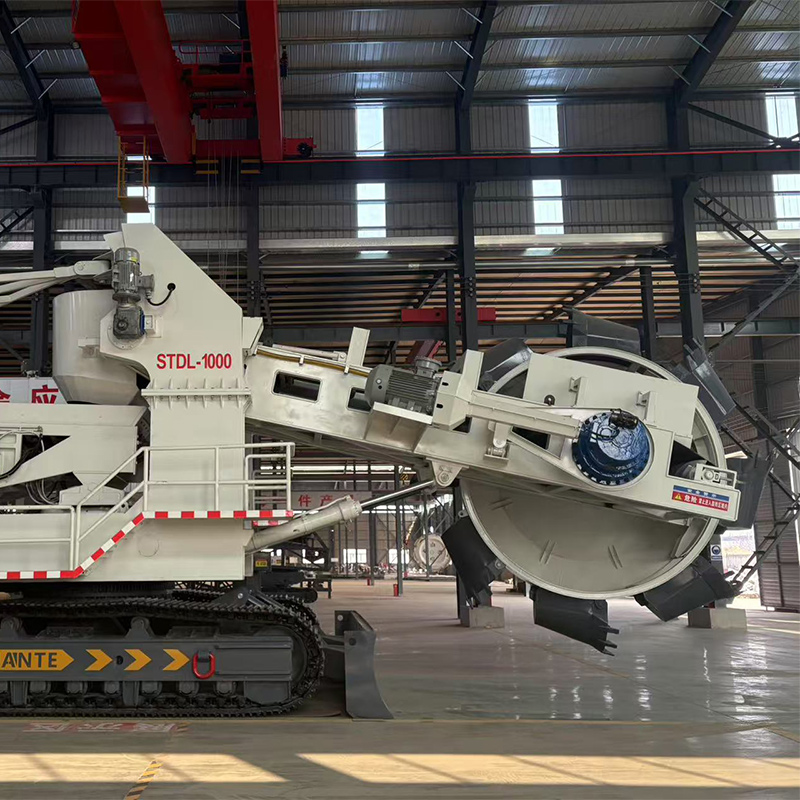

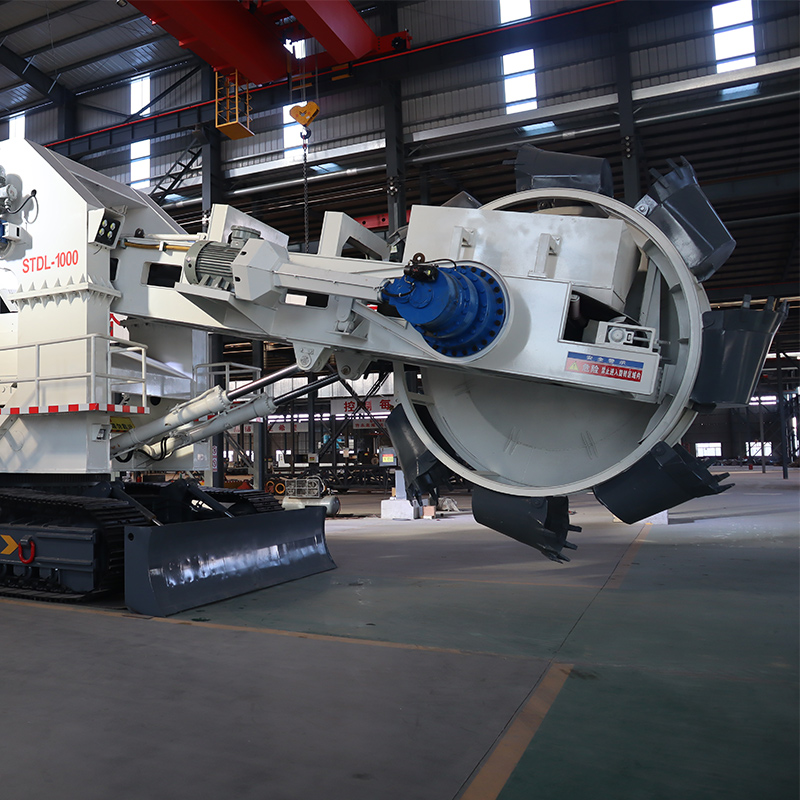

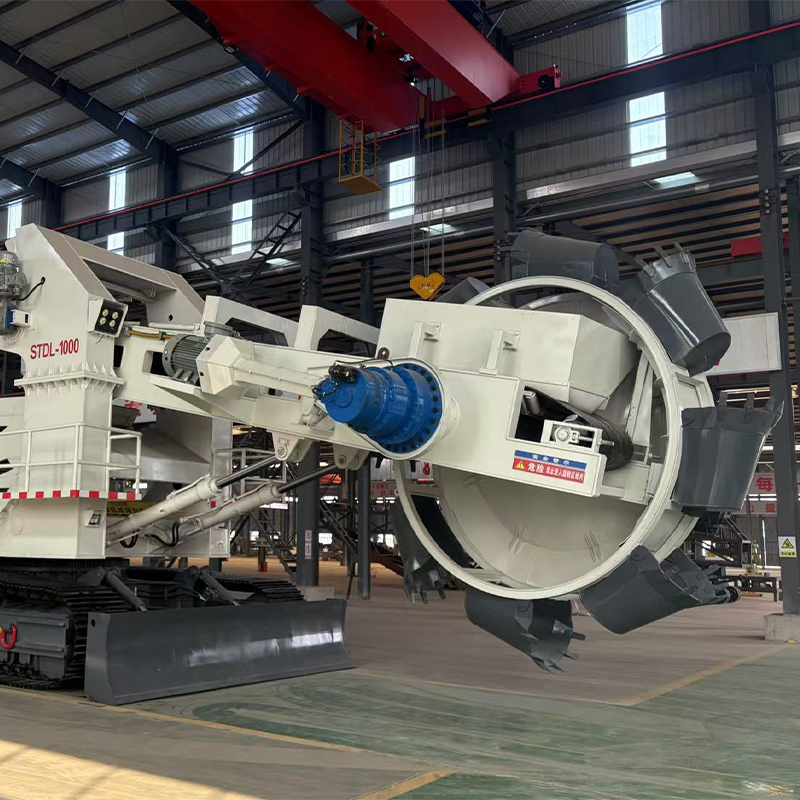

Consists of the bucket wheel, boom, luffing mechanism, and drive components. The bucket wheel—a rotating wheel with evenly distributed buckets—is mounted at the boom’s front end. The boom is hinged to the platform’s portal frame at its rear, allowing angular adjustment via wire ropes or hydraulic cylinders to position the bucket wheel across excavation planes. Boom configurations include fixed-length and telescopic variants. The bucket wheel drive assembly (motor, safety coupling, and reducer) is positioned laterally at the boom’s front to power rotation.

(4) Conveying System
Includes the receiving conveyor belt, hopper, and discharge conveyor belt. Bridge-connected bucket-wheel excavators additionally feature a transfer conveyor on the connecting bridge.

(5) Electric Drive System
Utilizes external power supply with frequency conversion units for motor control.

(6) Hydraulic System
Primarily employs hydraulic cylinders to actuate the bucket-wheel boom and discharge boom adjustments.

Company Strength:

Founded in February 2009, Shandong Shante Heavy Industry Machinery Co., Ltd is a natural person wholly-owned enterprise engaged in research and development, production, manufacturing and sales of mechanical equipment in coal mines, water conservancy projects and non-coal mines. With an area of over 10 hectares, the company has four series of more than 20 varieties, mainly including mining electric excavators, mining slag extractors, digging transfer machines, coal unloaders, milling excavators, etc. Its products are widely used in coal and non-coal mines, water conservancy projects, railway construction and tunnel, culvert excavation, loading and unloading, transferring and stacking of railway port cargo. The domestic market covers 28 provinces, municipalities and autonomous regions. The products are exported to Russia, South America, Southeast Asia and Africa, and have served more than 30 countries and regions around the world. After more than ten years of efforts and development, the company has won the fame and become the lead in the domestic mining machinery industry. It has successively won the Certificate of National High-tech Enterprise, the Certificate of Coal Safety and Mine Safety issued by the Anbiao National Center for Mining Products Safety Sign, and has been rated as the Provincial/Municipal Advanced Enterprise, the Enterprise that Honors Contract and Keeps Promise and Provincial Civilized Unit for many years.

In addition, as the New Material Technology Incubation Center, Teaching and Experiment Base and Post-doctoral Innovation Practice Base of Shandong University, the company also acts as the Municipal Enterprise Technology Center and Municipal Key Laboratory. The company has a solid foundation of innovation, leading innovation ability in the industry, excellent service, honesty and trustworthiness, excellent product quality, and hence the continuous improvement of enterprise popularity and reputation is well expected. The annual output of various mining machinery is 3000 sets.
