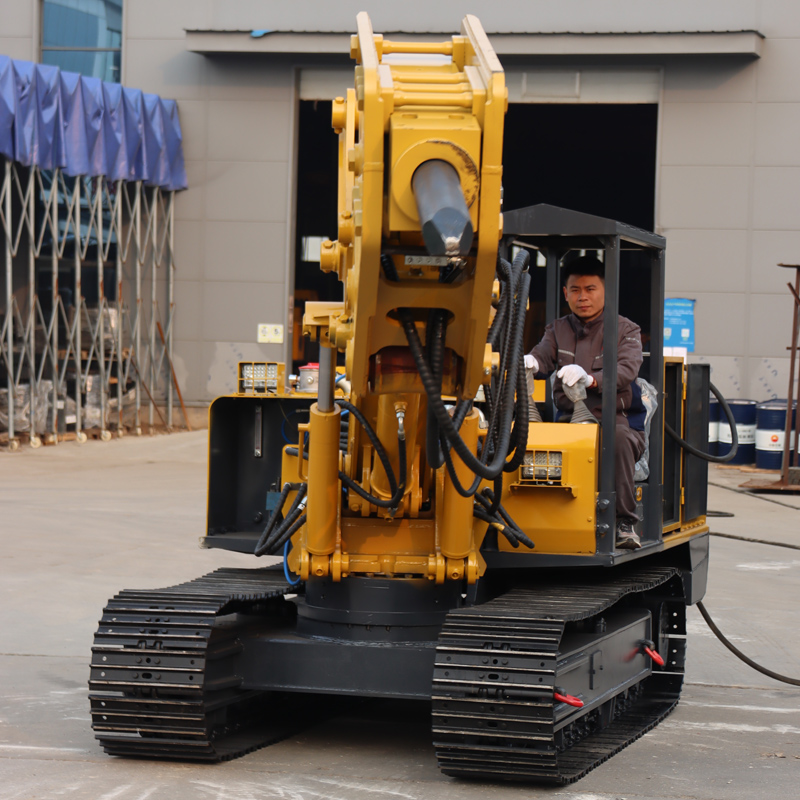

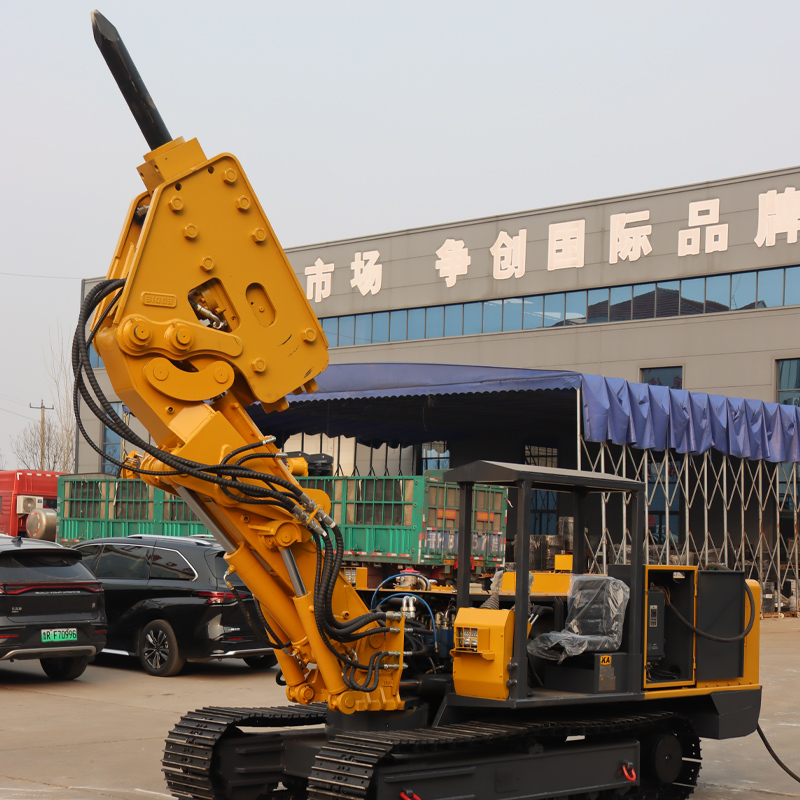

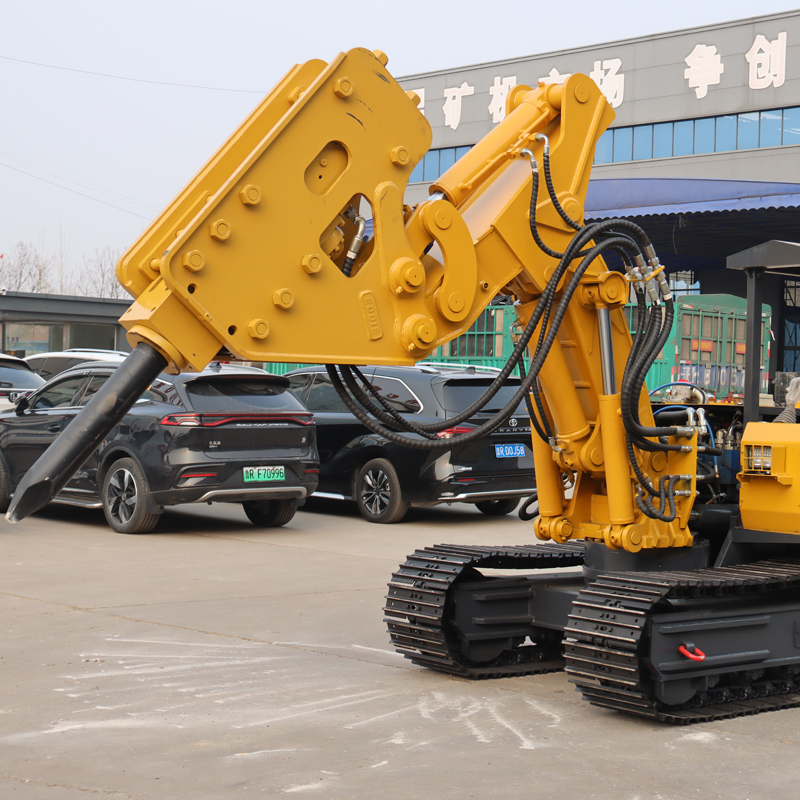

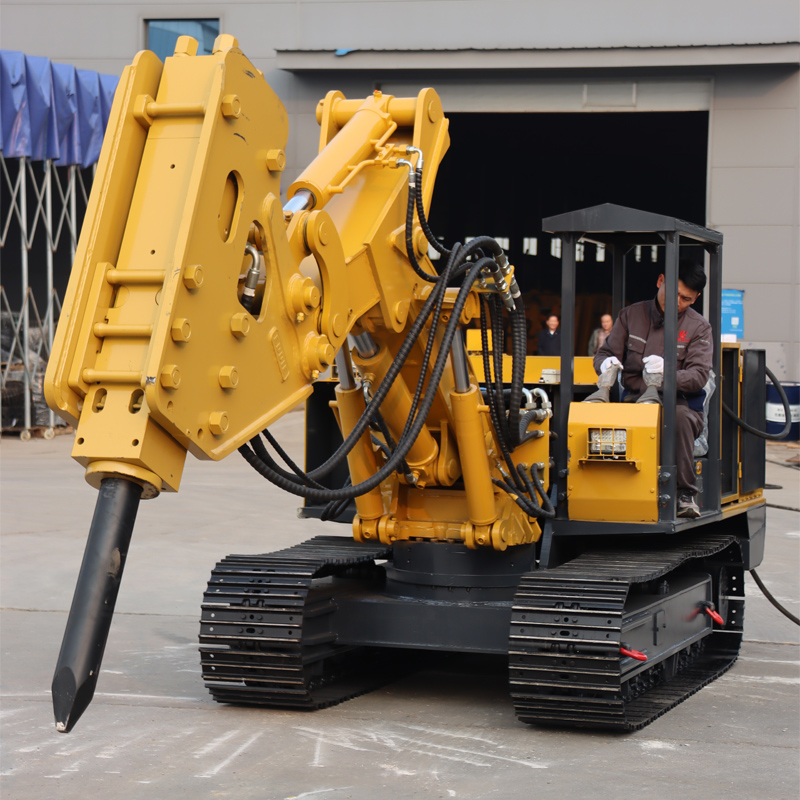

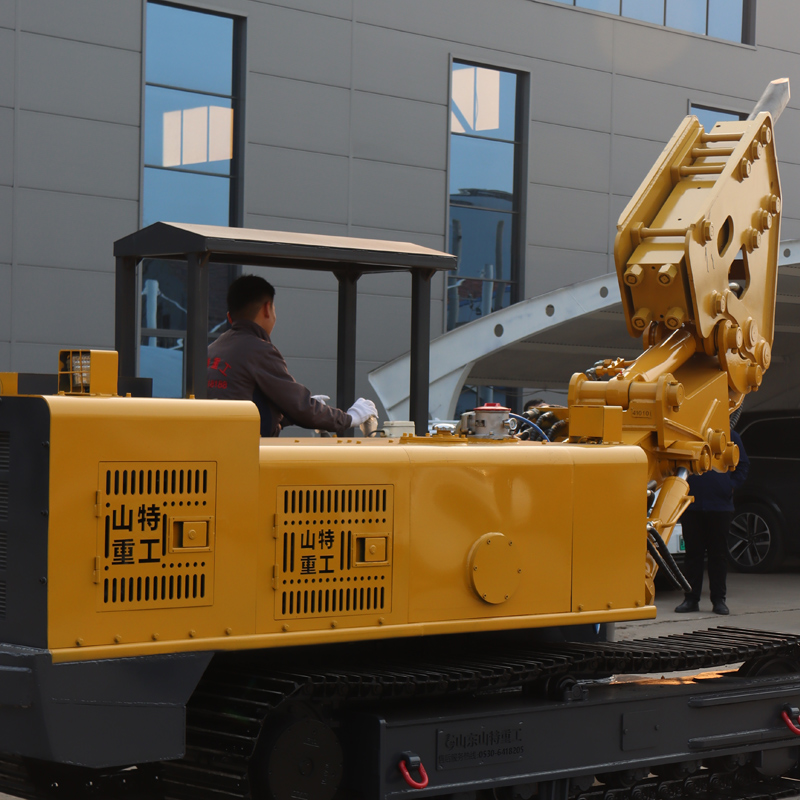

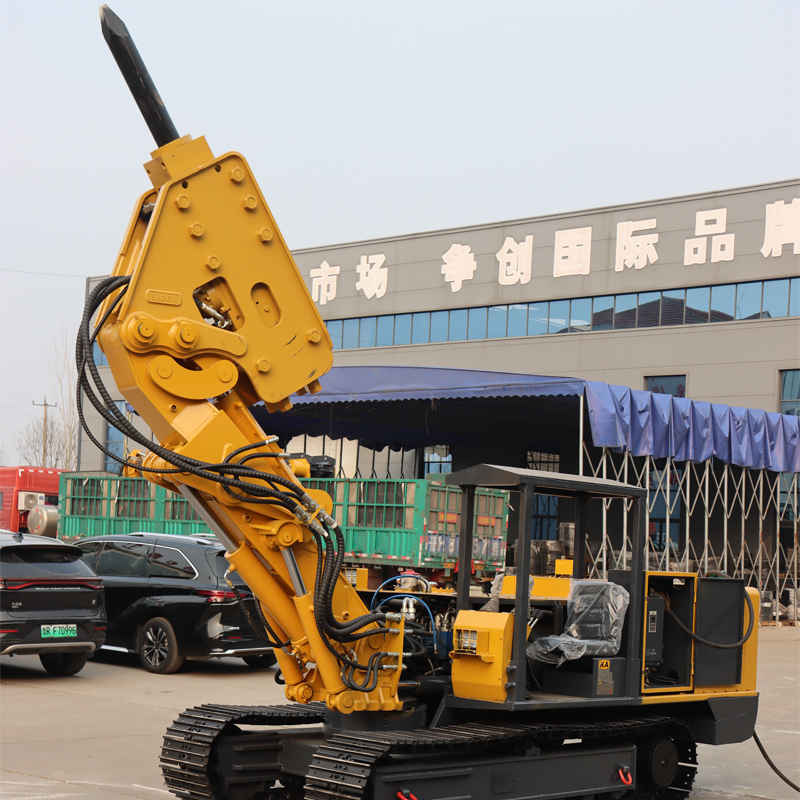

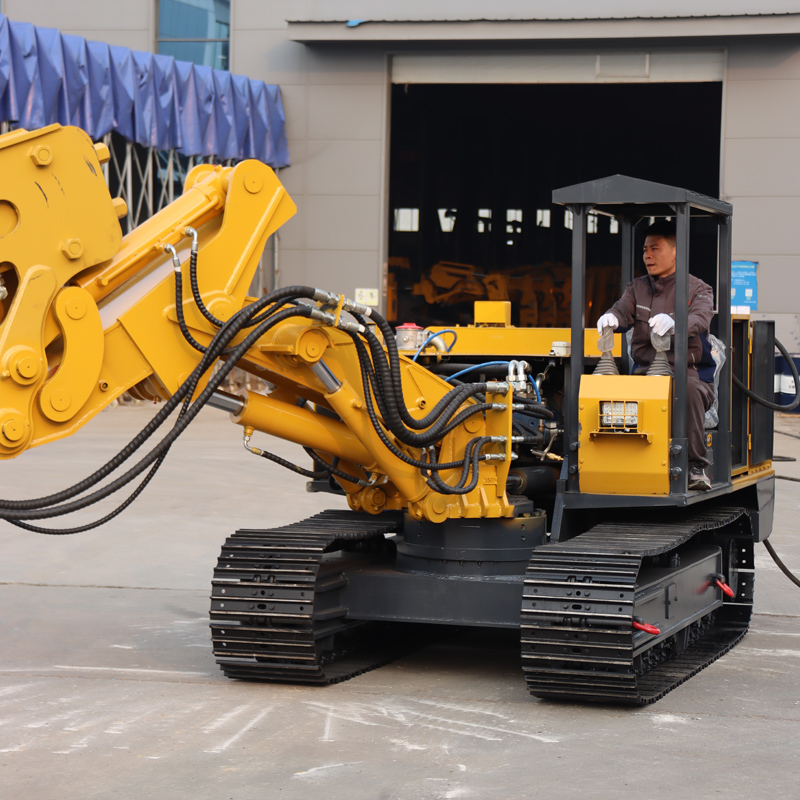

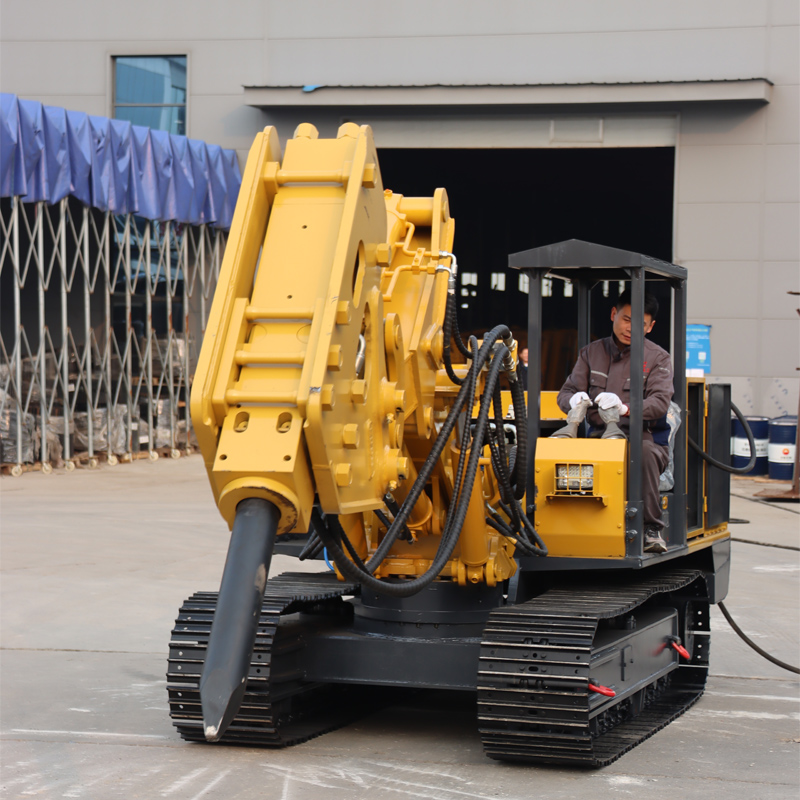

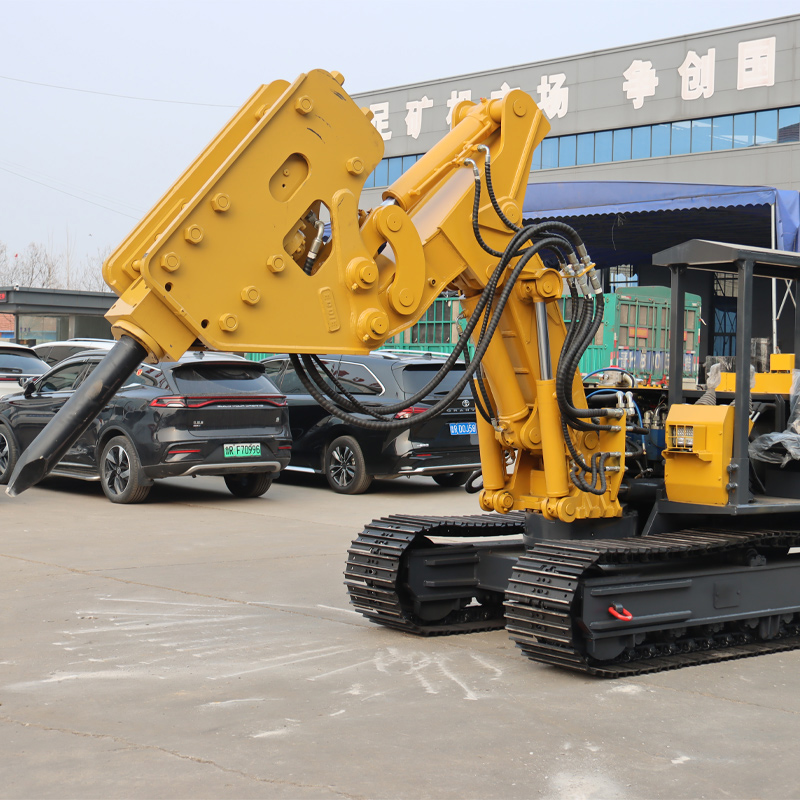

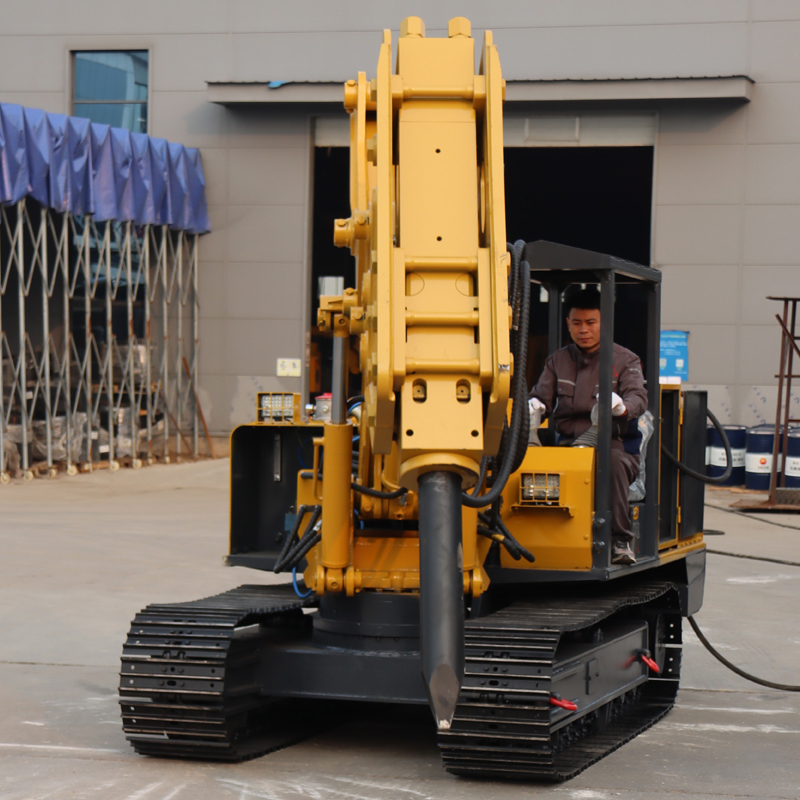

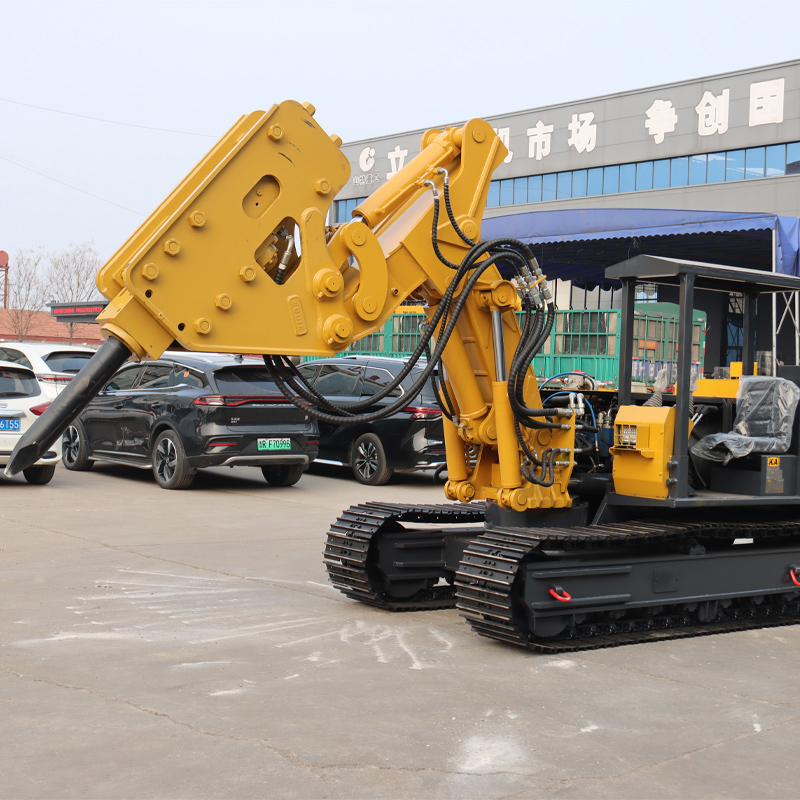

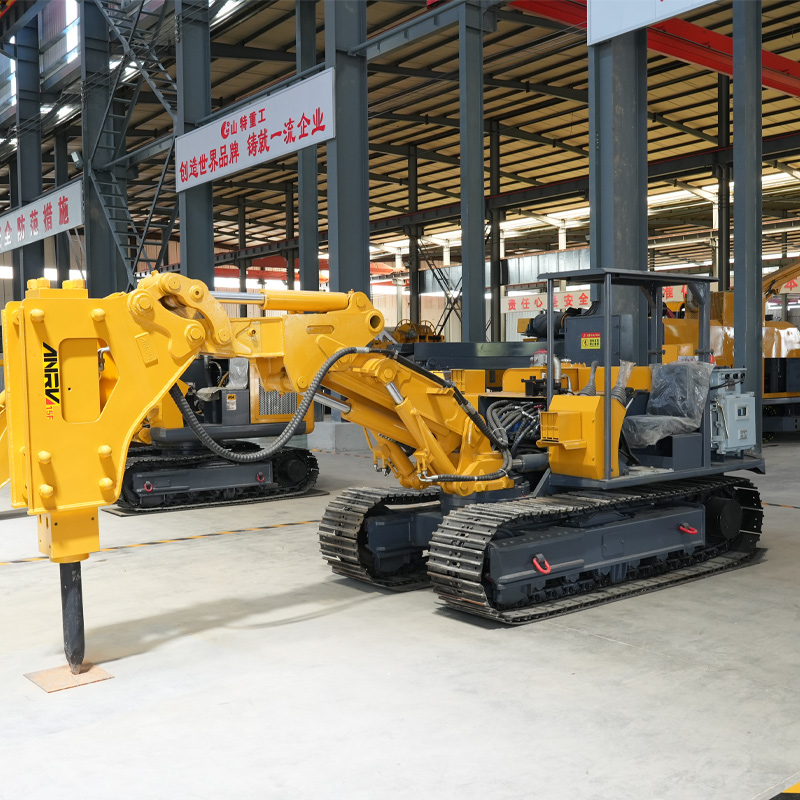

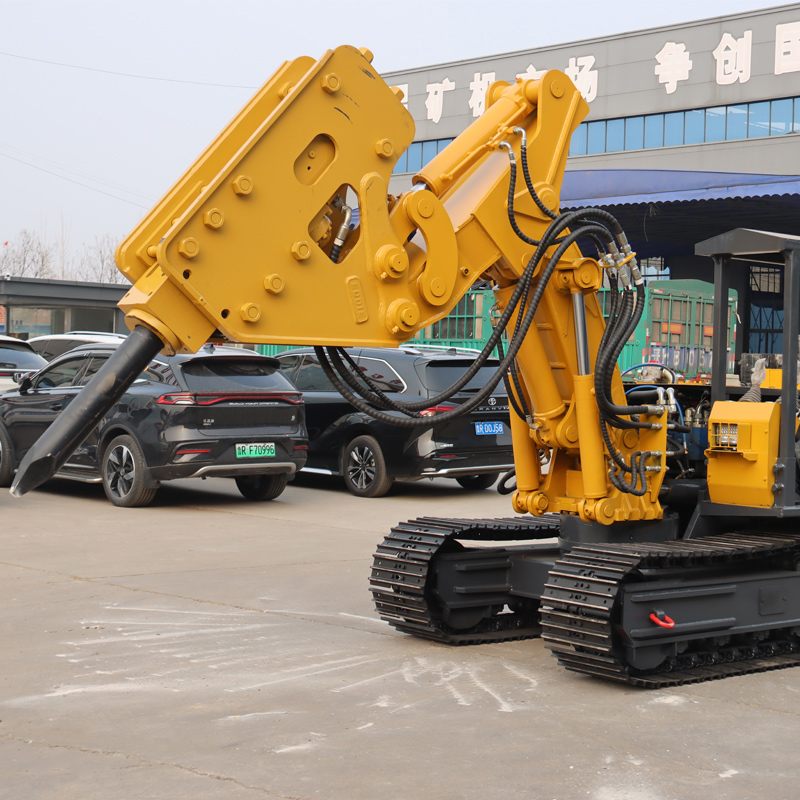

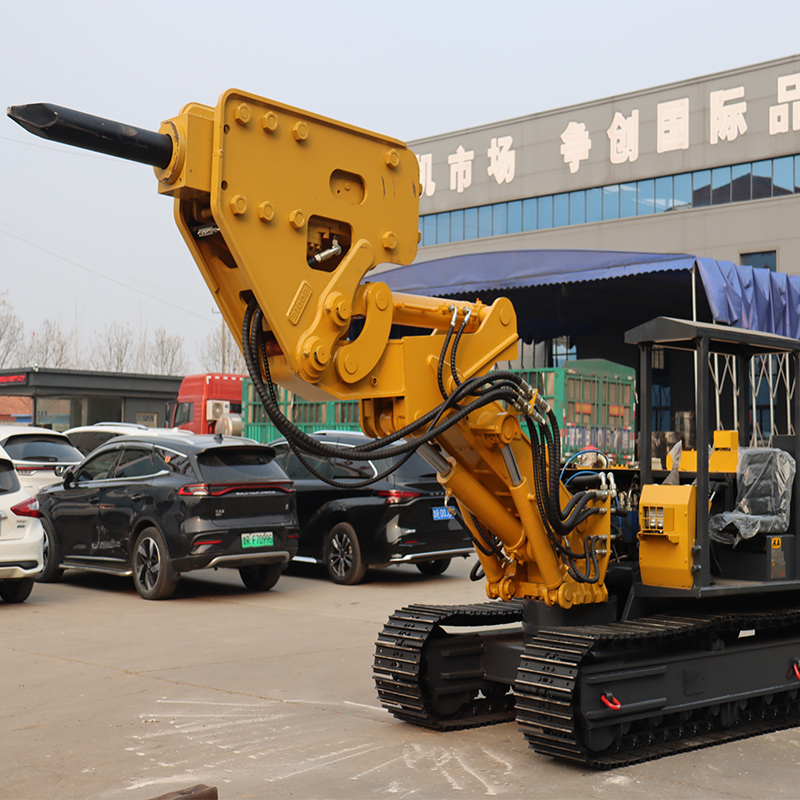

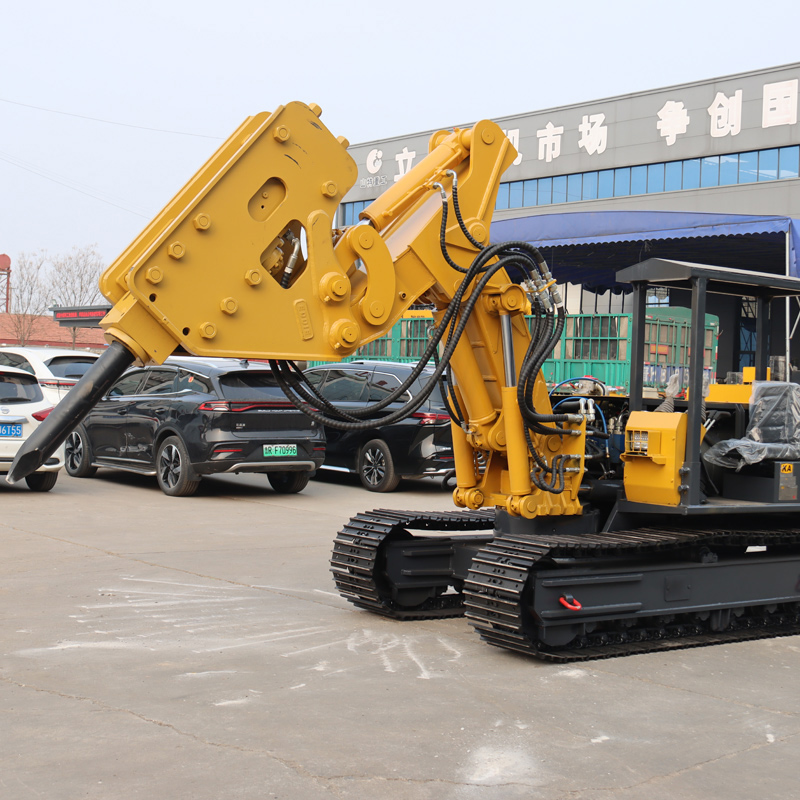

Rock Breaking Hammer
Product Advantages
This machine has compact structure, the main action is controlled by proportional pilot valve, easy and simple operation, smooth work without impact.
Due to the use of crushers to excavate in underground roadways, lower the bottom plate, etc., the firing operation can be eliminated, which greatly reduce the labor intensity of employees, save the cost of artillery excavation operations, save a lot of labor, it's safe and reliable. In addition, the crusher is simple to operate, easy to learn and easy to learn, convenient and comfortable to operate, standard configuration of operating lever, stable operation. The backrest seat close to human body shape, firm and durable, can effectively relieve the driver's operating fatigue. The machine is easy to maintain, and the oil pump and control valve protective cover can be fully opened, which is convenient for inspection and maintenance.

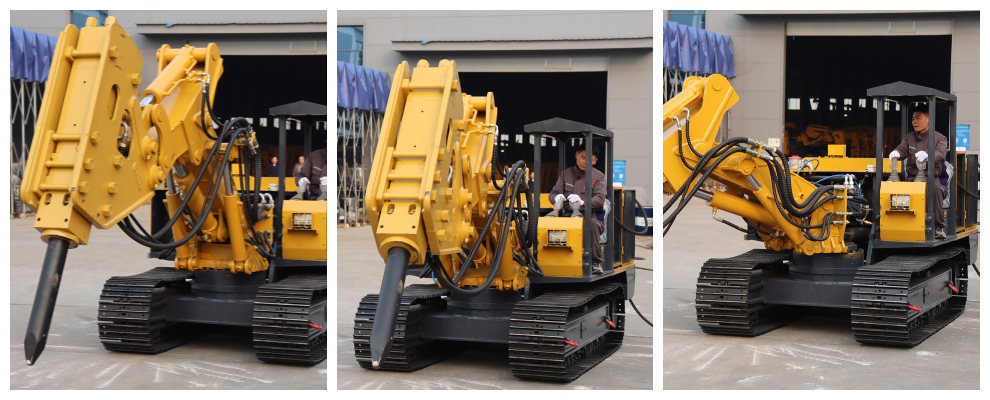

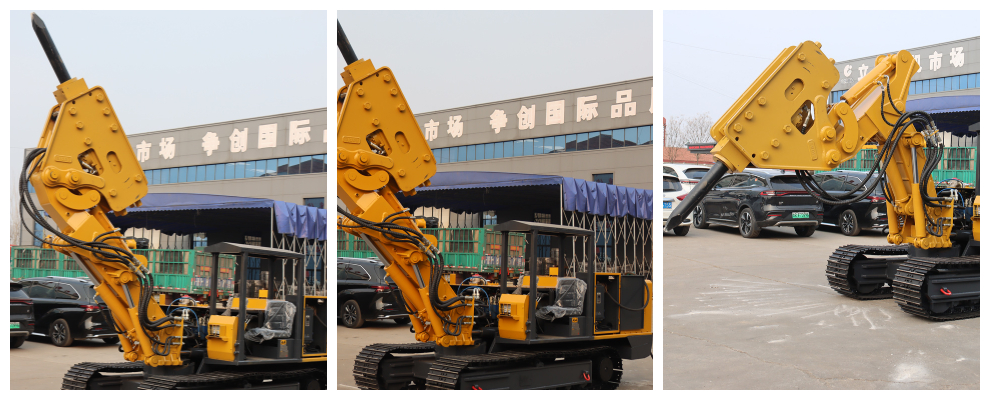

Product Details
Product Introduction
Rock Breaking Hammer: The articulated boom system provides vertical positioning aligned with tunnel profiles, eliminating conflicts with roof fixtures and geological layers to ensure obstruction-free functionality across variable mine passage dimensions during servicing operations.
Incorporating a shielded cylinder assembly within the boom structure, the telescoping mechanism protects critical hydraulic elements from operational impacts through integrated protective casings. Hydraulic conduits are strategically channeled through bilateral protective raceways along the boom's length, utilizing wear-resistant conduit shielding to withstand harsh particulate environments.
A reinforced hydraulic network generates elevated digging capacity through amplified bucket penetration forces, supported by corrosion-resistant fluid transfer interfaces that maintain system integrity under extreme pressures. The operator enclosure integrates a transparent panoramic interface with structural reinforcement, equipped with a convertible overhead shelter featuring rapid deployment mechanisms for adaptable worksite configurations.
The core power assembly utilizes a condensed layout with rockfall-deflective exterior cladding, enhanced by dynamic thermal regulation through multidirectional airflow management. A 360-degree fragmentation tool eliminates spatial constraints in material processing, facilitating seamless transition between earthmoving and structural demolition workflows.
The electric drive system operates with attenuated sound profiles and clean energy compliance, specifically engineered for ecological sensitivity in confined underground mineral extraction environments.
Project | Unit | STP - 100 | STP - 140 |
| Weight | T | 7 | 10 |
| Overall dimension-(L×W×H) | mm | 4600×1640×2650 | 6200×1850×3350 |
| Breaking capacity | m³/h | 0 - 10 | 0 - 20 |
| Min.turning radius | mm | 3000 | 3500 |
| Climbing ability | ° | ≤18（ Hard ground） | ≤18（Hard ground） |
| Traveling Speed | m/min | High:3.1 Low:2 | High:3.1 Low:2 |
| Ground clearance | mm | 200 | 300 |
| Nominal working pressure | mpa | 25 | 25 |
| Motor Power | kw | 45/55 | 75/90 |
| Broken hammer | 85/100 | 125/140 | |
| Applicable section-(W×H) | m | ≥3×3 | ≥4.5×4.5 |
| Breaking width | mm | ≥4500 | ≥6500 |
| Breaking distance | mm | ≥2900 | ≥3500 |
| Breaking Height | mm | ≥4000 | ≥5500 |
| Breaking depth | mm | ≥1500 | ≥1900 |
| Max.rotation angle | ° | ±40 | ±45 |

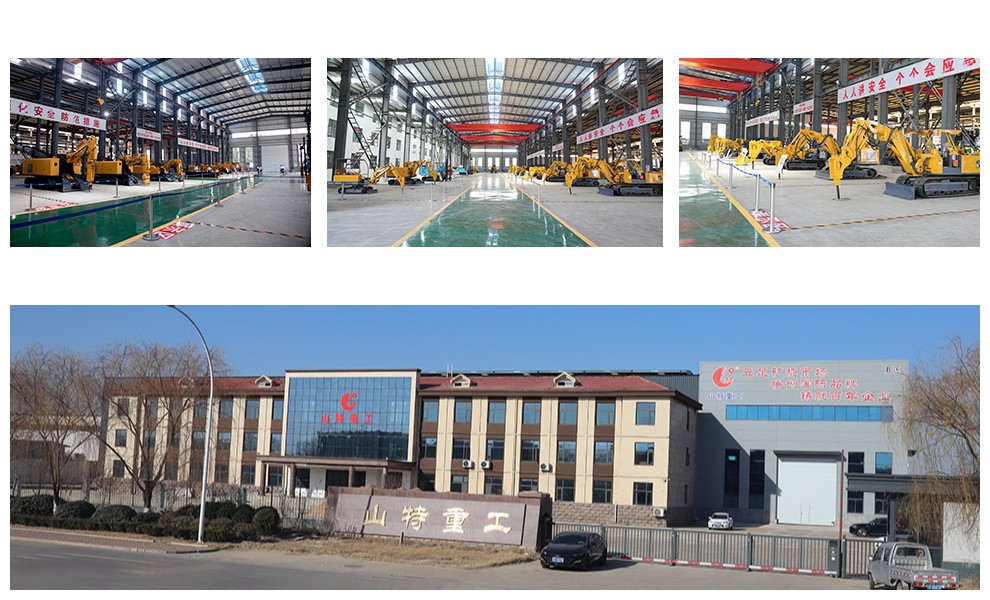

Company Profile
Established on February 17, 2009, the company is a prominent manufacturer of mining machinery specializing in producing equipment for underground and surface mining operations. Its product portfolio includes mining mucking loaders, electric excavators for mining applications, tunnel rehabilitation equipment, rock breaker systems, milling excavators (mini roadheaders), bucket-wheel stacker-reclaimers, coal unloading systems, and underground scalers.
With an annual production capacity of 3,000 units/sets of mining and construction machinery, the organization caters to diverse industrial requirements across multiple sectors. The company's solutions are designed to address operational challenges in both subterranean and open-pit mining environments.
