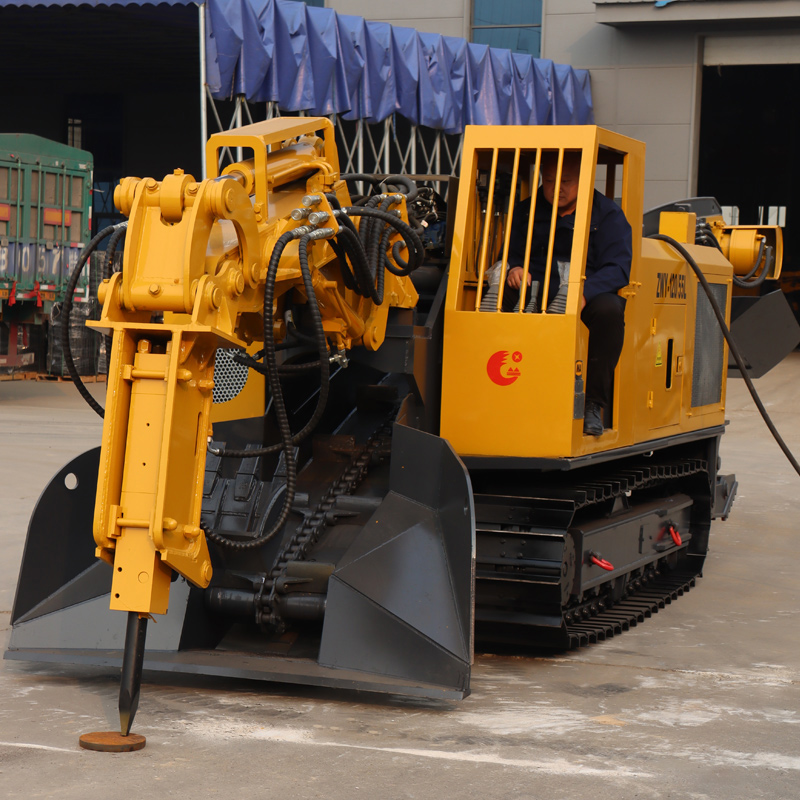

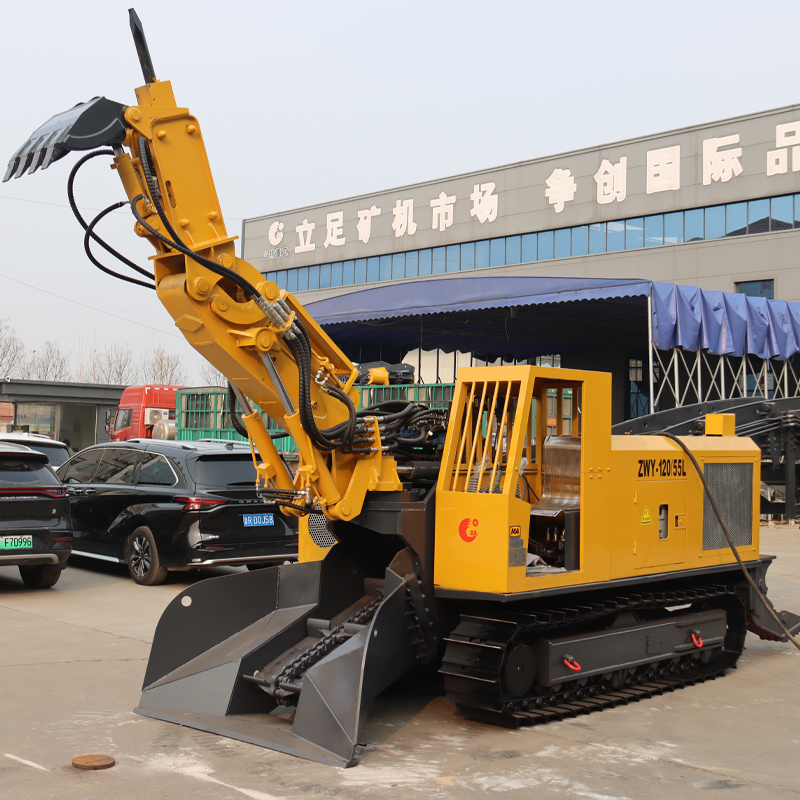

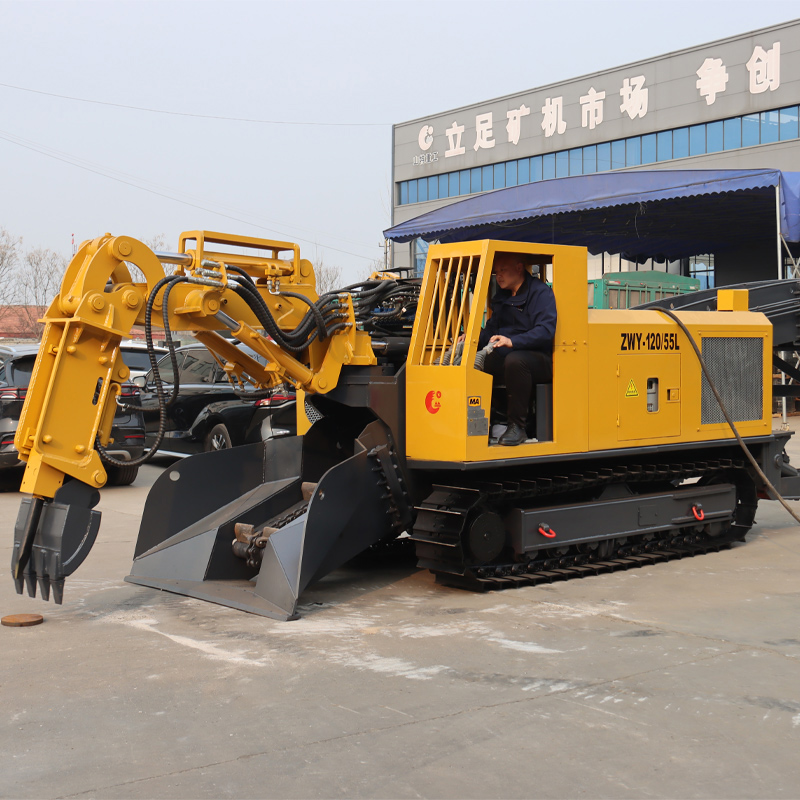

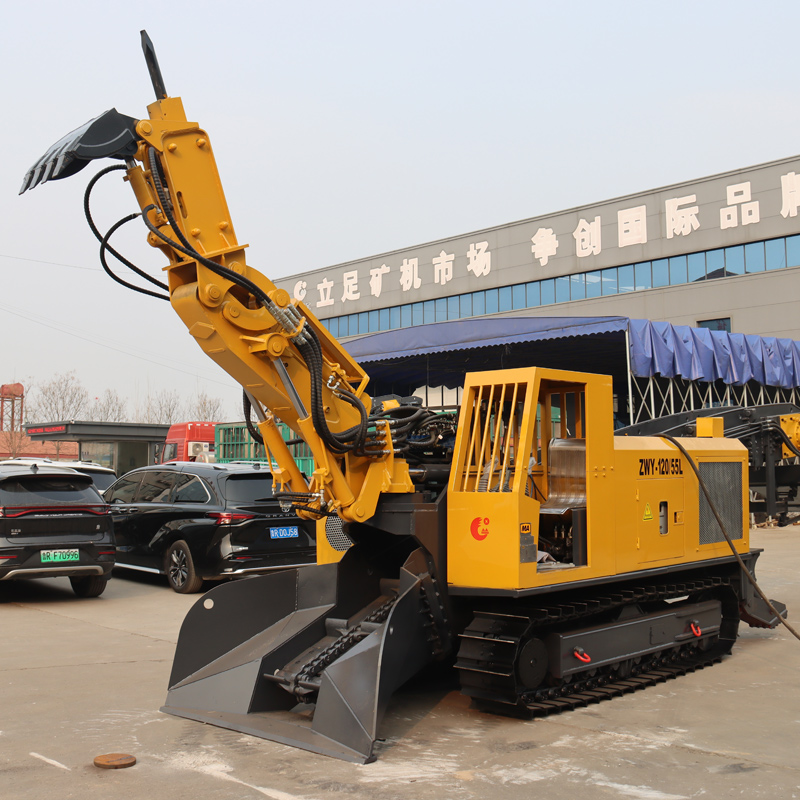

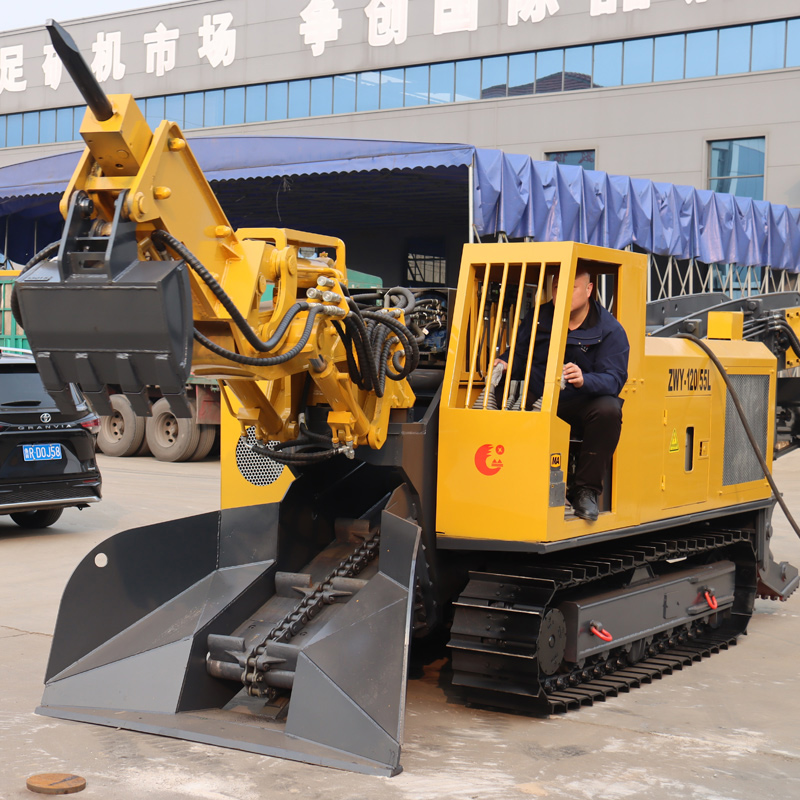

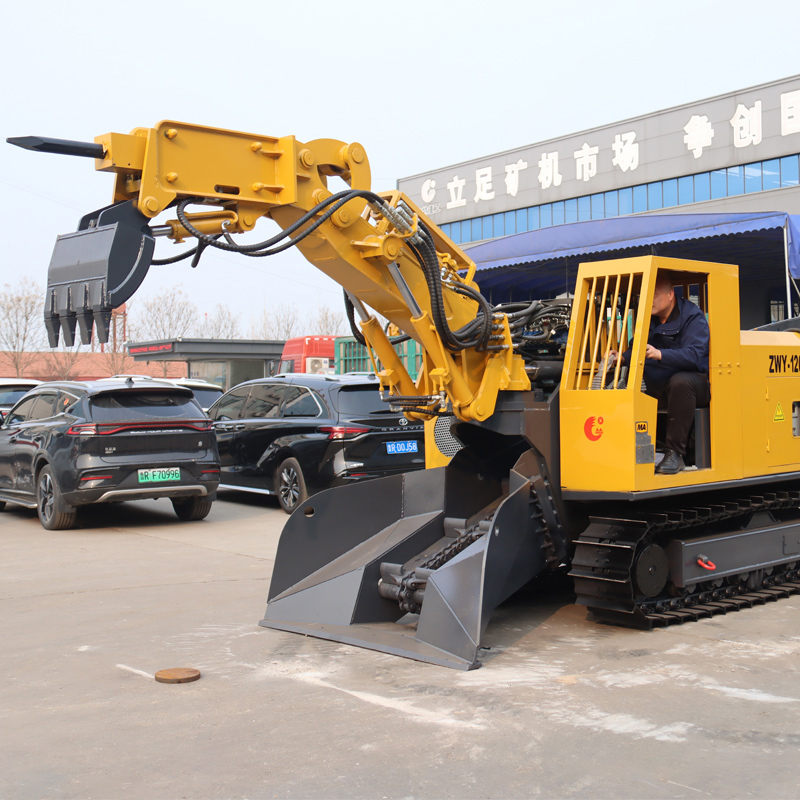

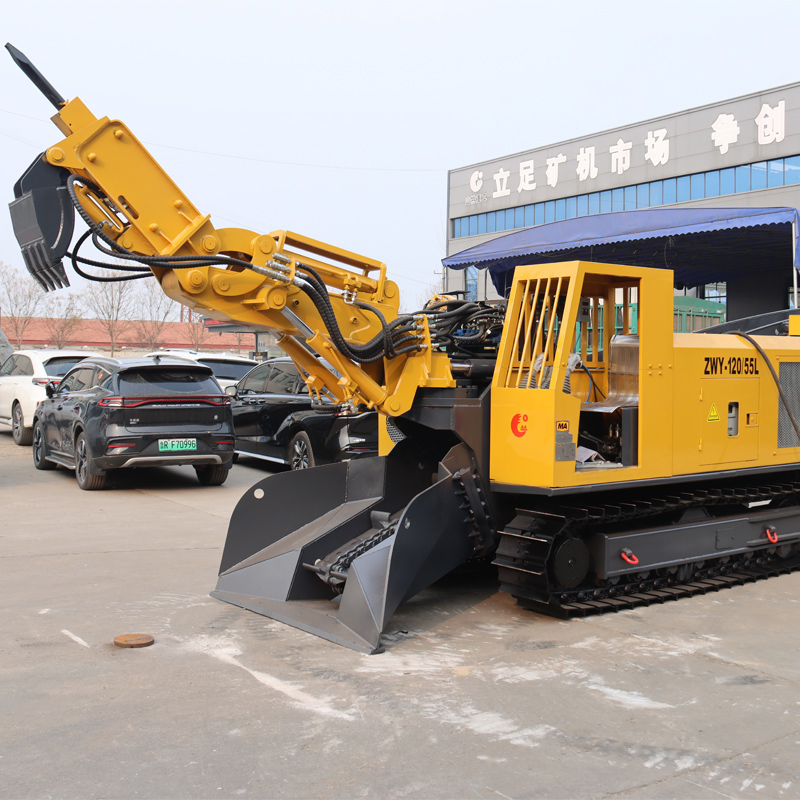

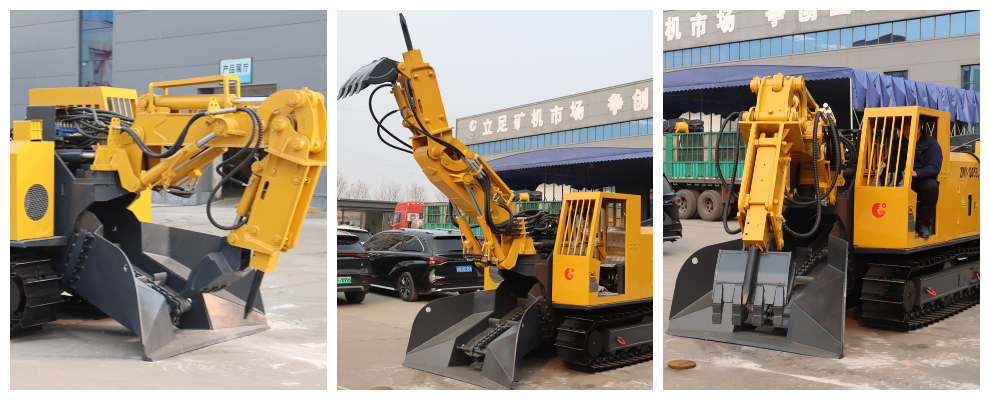

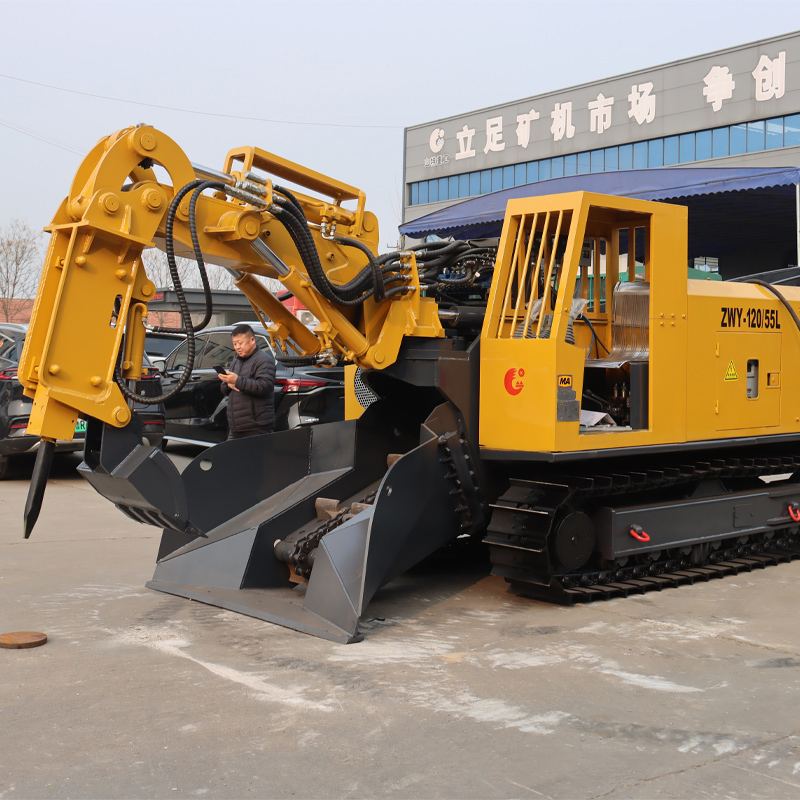

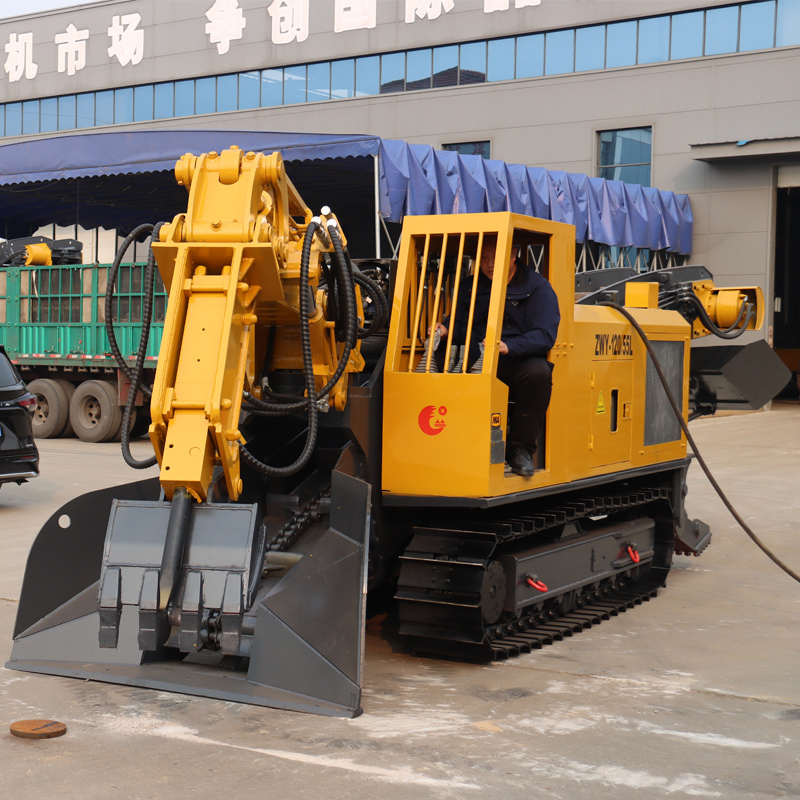

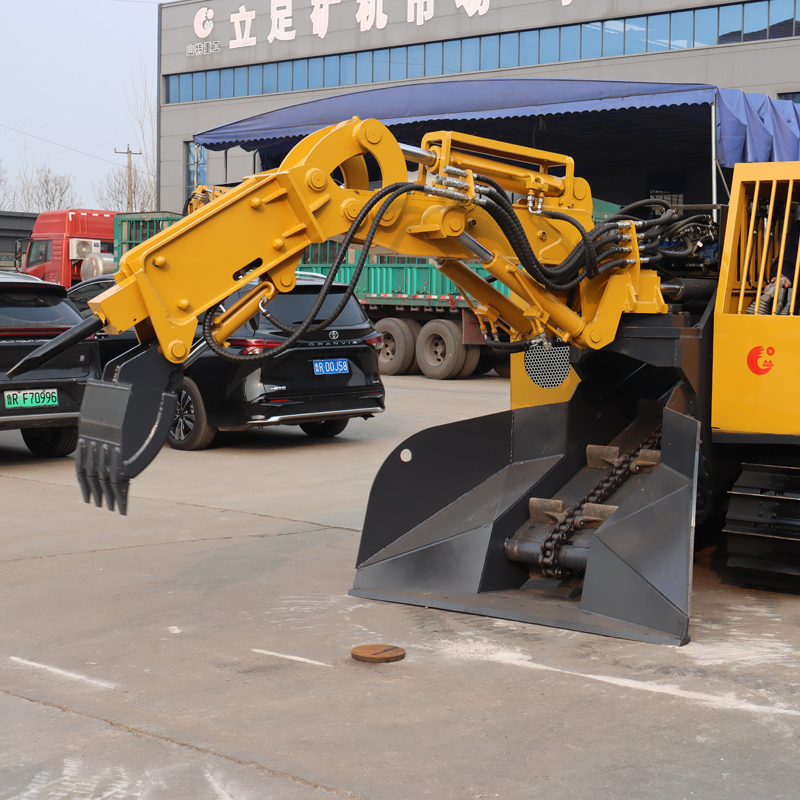

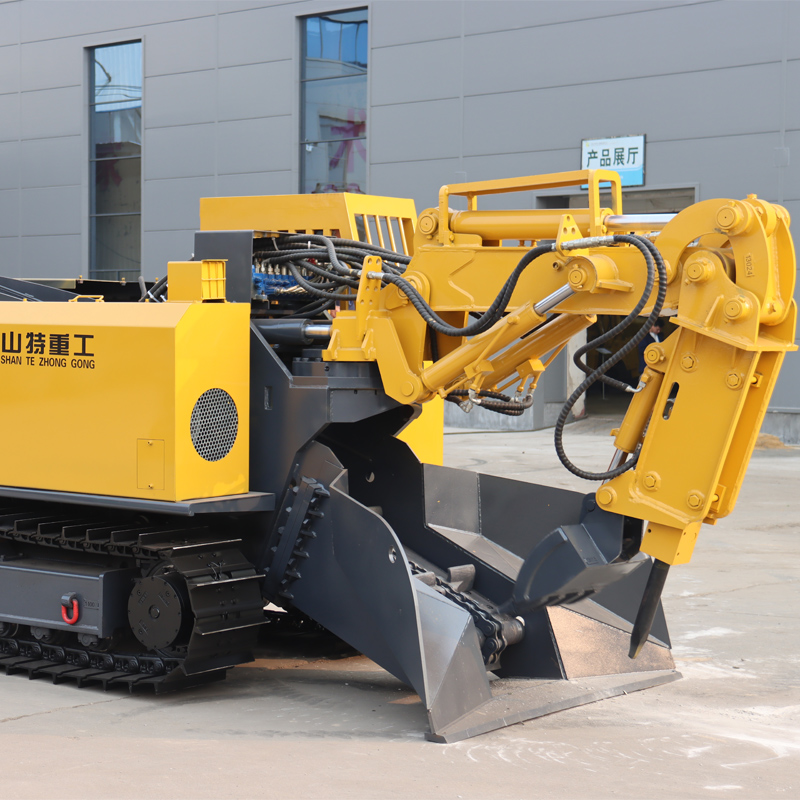

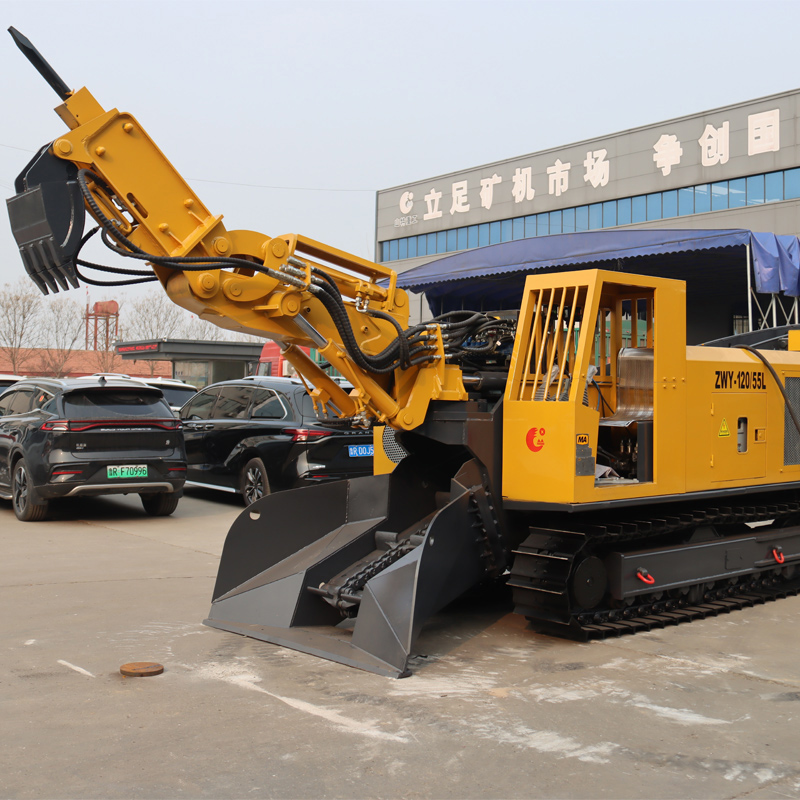

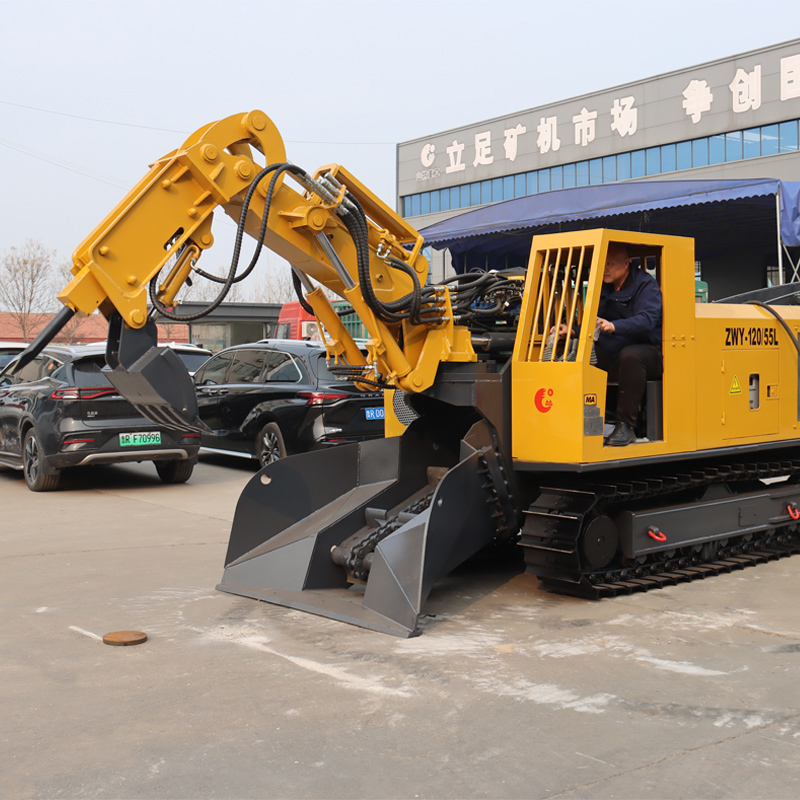

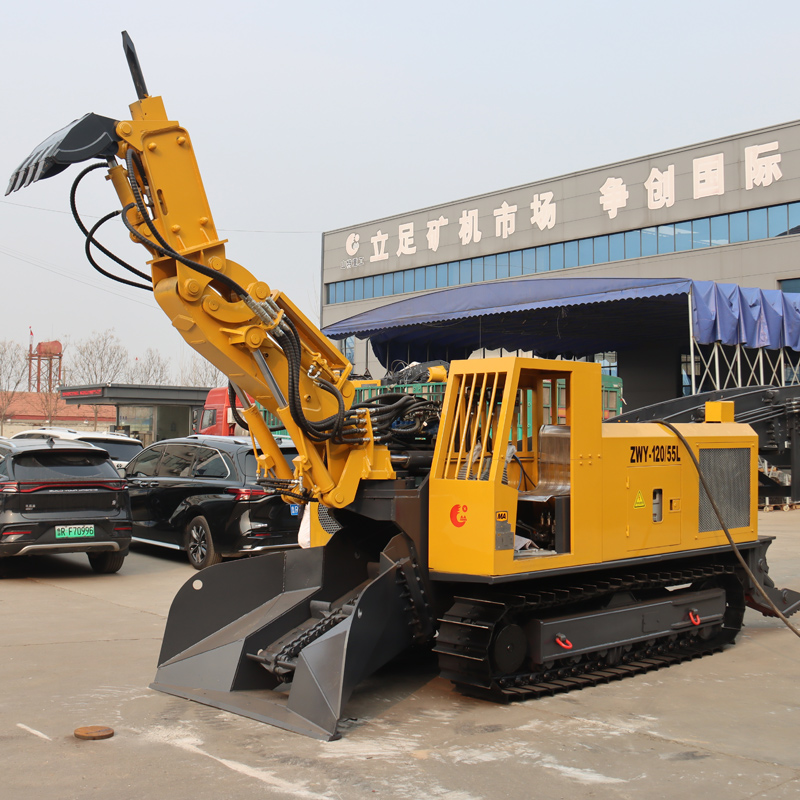

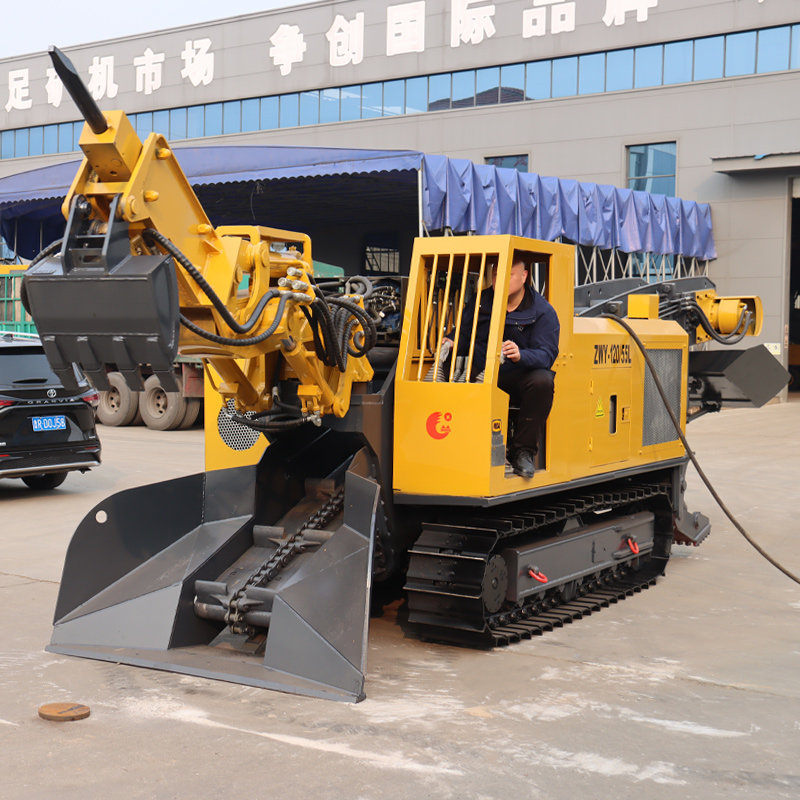

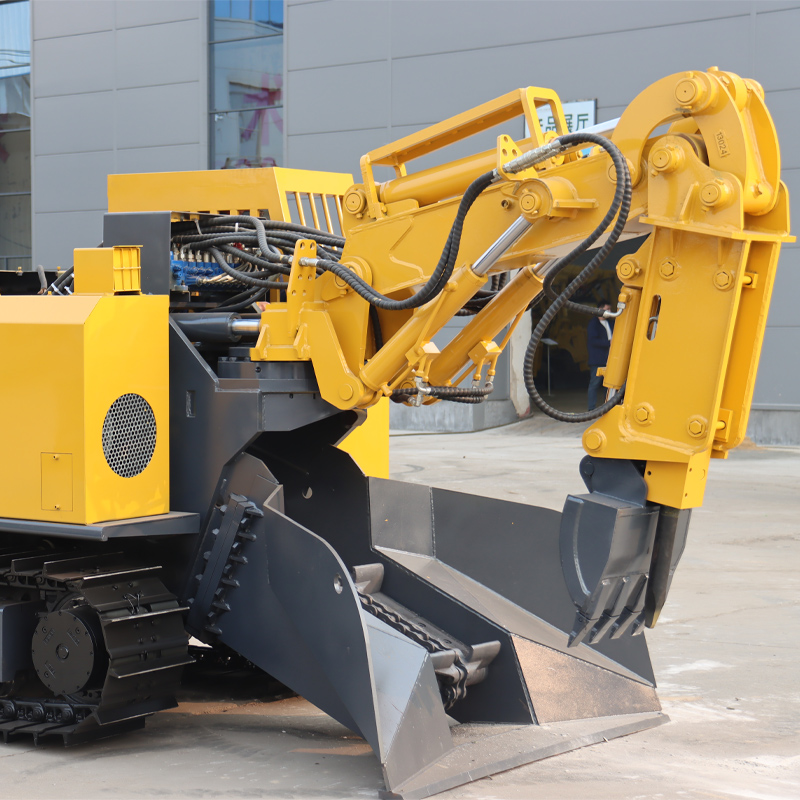

Multifunctional Mucking Loader For Coal Mine
Product Advantages:
This machine uses crawler to travel, with large driving force, wide pick-up range, can be full - section rock loading, no dead corner, no manual assistance to clean the working surface, and can quickly complete the work of risk removal and ditching.
This machine adopts imported hydraulic pilot control lever system, which is light control, strong control ratio and high reliability.
The power of this machine can be equipped with diesel and electric integration, and a variety of supporting accessories can be selected.
Product Details
Product Introduction:
The Multifunctional Mucking Loader is a high-performance crawler-driven machine designed for efficient excavation and material handling in challenging environments. Equipped with a robust crawler system, it delivers exceptional driving force and a wide pick-up range, enabling full-section rock loading without leaving dead corners. Its automated operation eliminates the need for manual cleanup of the working surface, significantly enhancing productivity. Additionally, the machine excels in rapid risk removal and precise ditching tasks, making it indispensable for mining, tunneling, and construction projects.
Featuring an imported hydraulic pilot control lever system, this loader ensures smooth and precise operation. The system provides lightweight control, exceptional responsiveness (strong control ratio), and outstanding reliability, allowing operators to manage complex tasks with ease. Advanced hydraulic technology minimizes operator fatigue while maximizing accuracy and safety in demanding conditions.
The loader offers flexible power options with diesel-electric integration, catering to diverse operational needs and environmental requirements. Its modular design supports the integration of various attachments and accessories, such as specialized buckets, breakers, or grading tools, enabling customization for specific applications. This adaptability ensures the machine remains versatile across industries, from underground mining to surface construction, delivering unmatched efficiency and versatility.
Multifunctional Mucking Loader For Coal Mine | |||
Project | Unit | ZWY - 120/55L | ZWY - 150/55L |
| Weight | T | 14.8/16.8 | 15.8 |
| Overall dimension(L*W*H) | mm | 6500×2000×2300 | 7950×2140×2400 |
| Loading Capacity | m³/h | ≈120 | ≈150 |
| Ground Clearance | mm | 270 | 380/480 |
| Nominal working pressure | mpa | 25/35 | 25/35 |
| Traveling Speed | km/h | 2.15/3.8 | 2.15/3.8 |
| Motor Power | Kw | 45/55 | 55/79 |
| Max size materials can pass through（L*W*H） | mm | 800*780*700 | 830*800*750 |
| Applied tunnel gradient | ° | ≤18（Adapt to the ground） | ≤18（Adapt to the ground） |
| Applicable section(W*H) | m | ≥3.0*3.0 | ≥3.5*3.5 |
| The inside track width | mm | 1100（ Can be widened） | 1210（ Can be widened） |
| Transport form of scraper | Double-chain and dual-drive Single-chain and single-drive | Double-chain and dual-drive Single-chain and single-drive | |
| Climbing ability | ° | ≤25（Adapt to the ground) | ≤25（Adapt to the ground) |
| Excavating Width | mm | standard arm：5300 short arm：4800 | standard arm：6300 short arm：5200 |
| Excavating Distance | mm | ≥2200 | ≥2850 |
| Excavating Height | mm | Standard arm：3300 Short arm：2700 | Standard arm：3700 Short arm：2700 |
| Excavating Depth | mm | Standard arm：700 Short arm：400 | Standard arm：720 Short arm：400 |
| Unloading Height | mm | 1913（Variable） | 2000（Variable） |
| Minimum Loading Height | mm | 1680（Variable） | 1680（Variable） |
| Uninstall Distance | mm | 2000（Can be lengthened） | 2000（Can be lengthened） |
| Max.rotation angle | ° | ±50 | ±55 |
Company Strength:
Established in 2009, Shandong Shante Heavy Industry Machinery Co., Ltd. is a privately held enterprise specializing in the design, production, and distribution of industrial equipment for mining, hydraulic engineering, and infrastructure sectors. Spanning a facility exceeding 100,000 square meters, the company offers four core product lines encompassing over 20 specialized variants, such as mining-grade electric excavators, slag removal systems, material transfer excavators, coal discharge units, and trenching machinery.
Market Reach & Applications:
The company’s equipment finds application across diverse sectors, including mineral extraction, hydraulic infrastructure development, rail network construction, and underground passage excavation, as well as cargo handling operations in transportation hubs. Domestically, its network extends to 28 provincial-level regions, while globally, its solutions serve clients in over 30 nations across Russia, South America, Southeast Asia, and Africa.
Accreditations & Industry Leadership:
Recognized as a pioneer in China’s mining machinery sector, Shante holds prestigious certifications such as the National High-Tech Enterprise designation and coal mine safety compliance approvals from authoritative bodies. It has earned repeated accolades as a provincial/municipal exemplary enterprise, contract-honoring entity, and civilized unit. The company further strengthens its innovation ecosystem through collaborations with Shandong University, hosting a postdoctoral research hub, technology incubation center, and municipal-level R&D laboratories.
Operational Excellence:
With a commitment to technological innovation, service integrity, and product reliability, Shante maintains industry-leading R&D capabilities and a robust manufacturing foundation. Its annual production capacity exceeds 3,000 units of mining machinery, reinforcing its growing reputation as a trusted partner in global industrial development.
