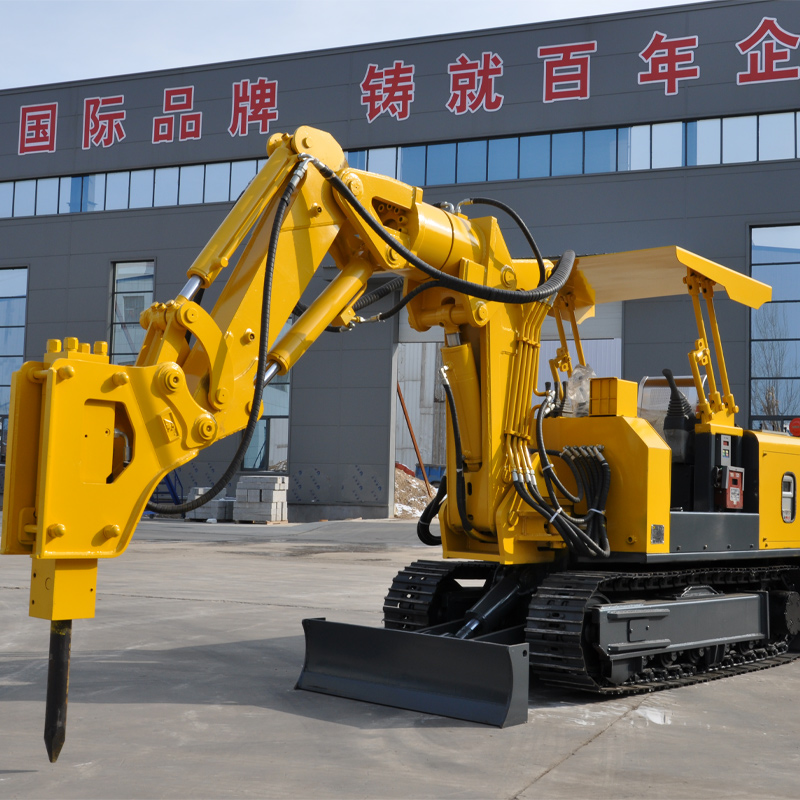

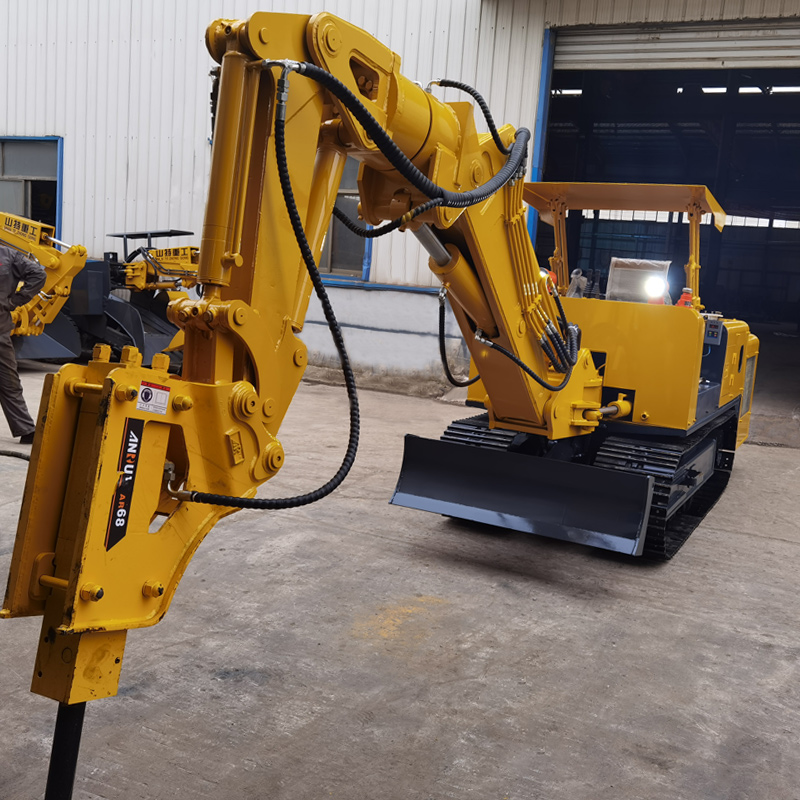

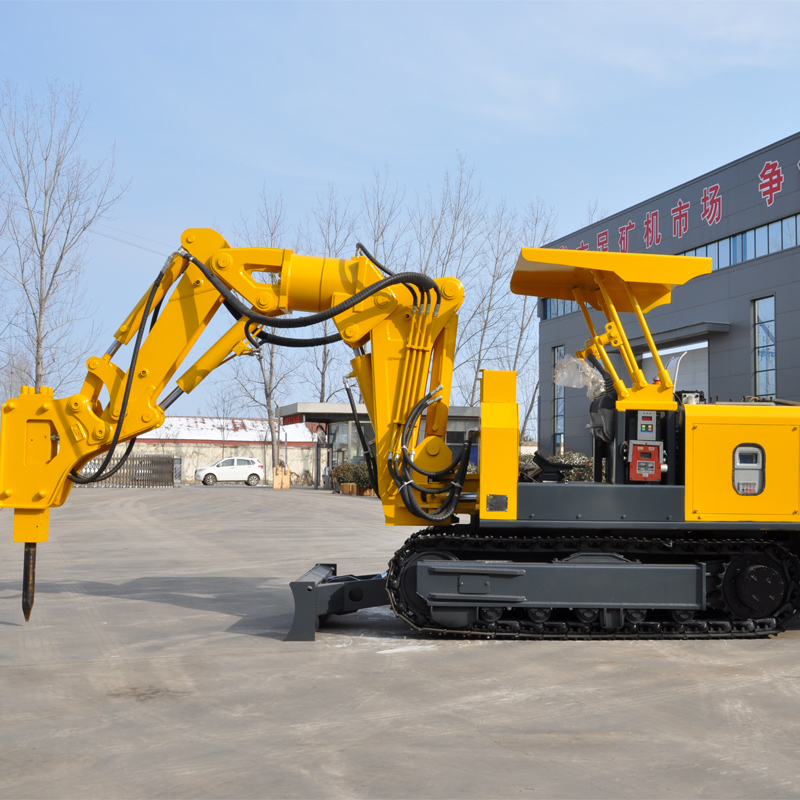

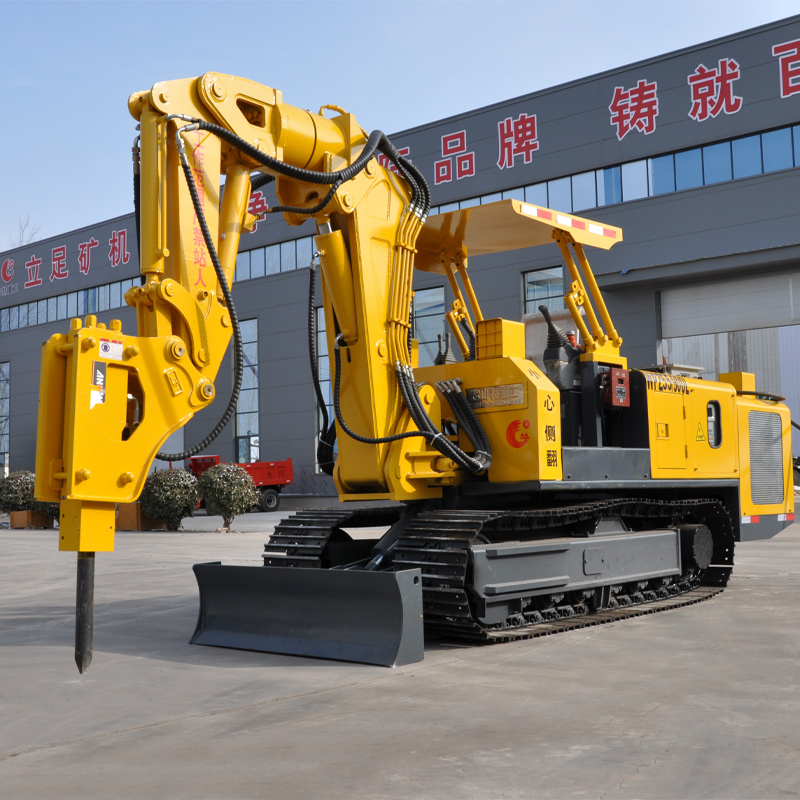

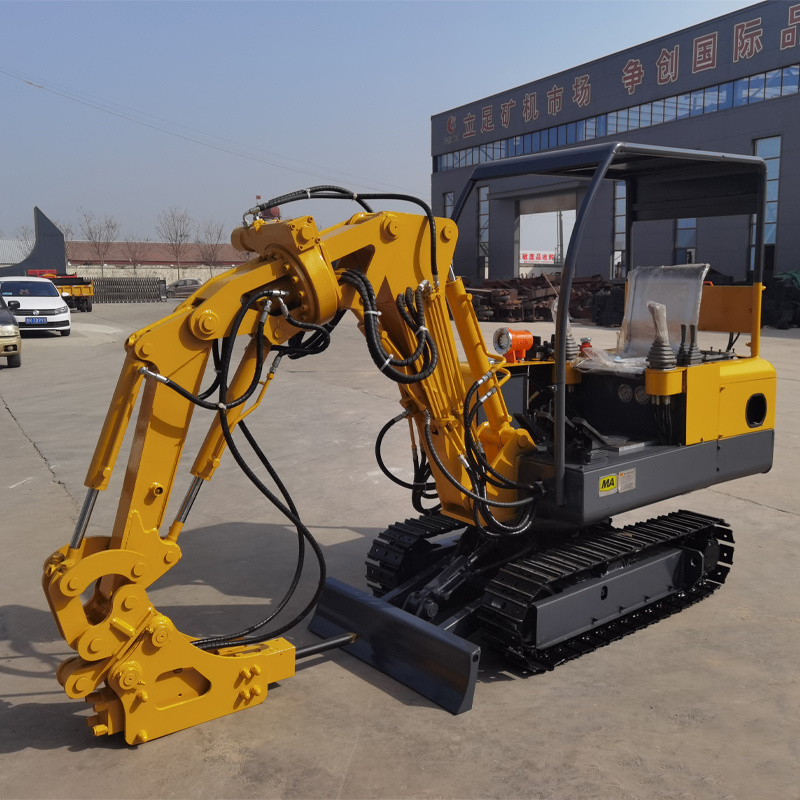

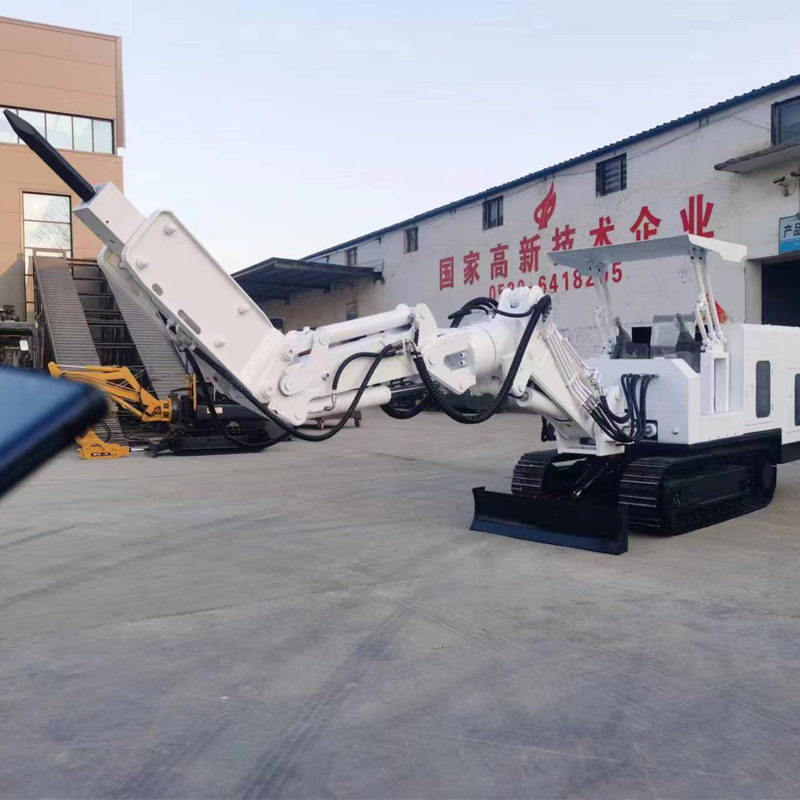

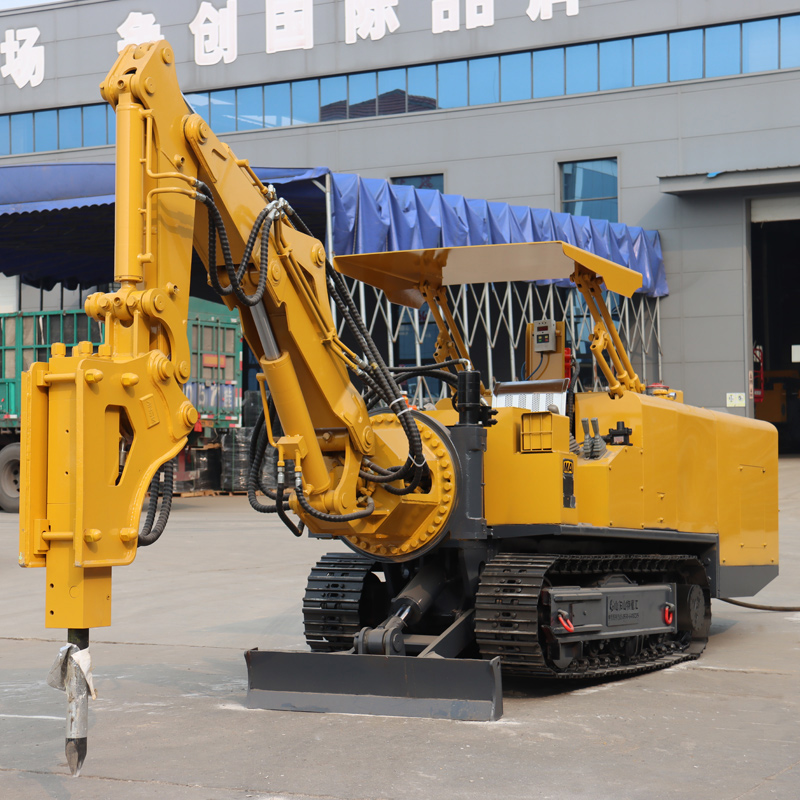

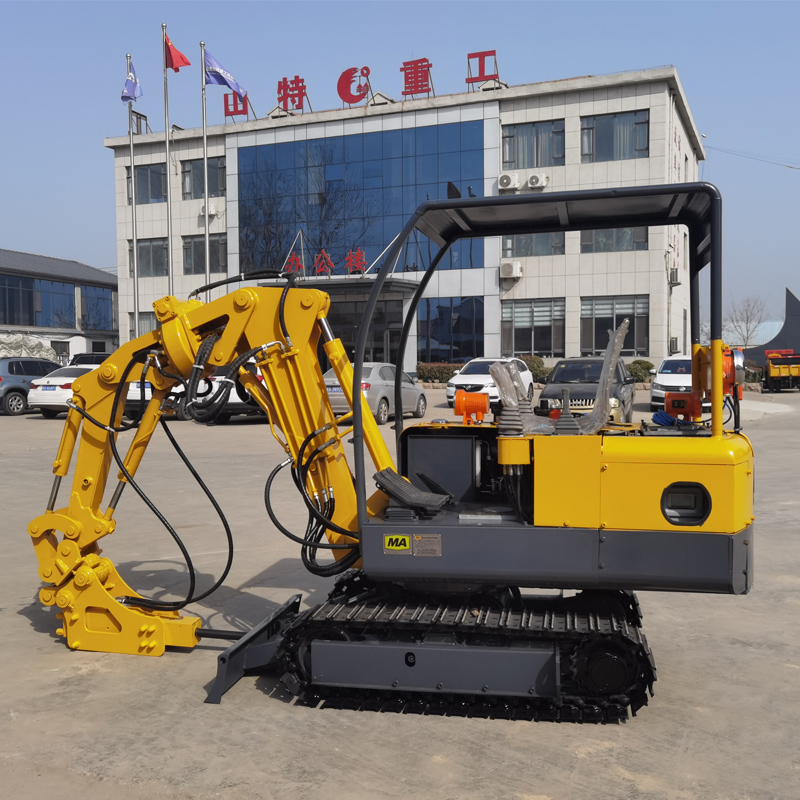

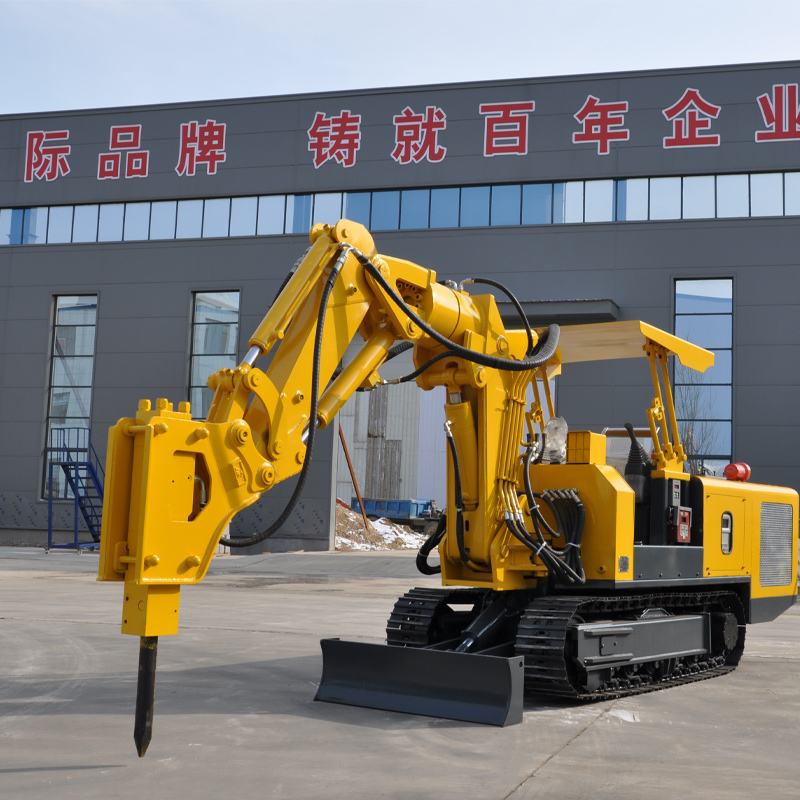

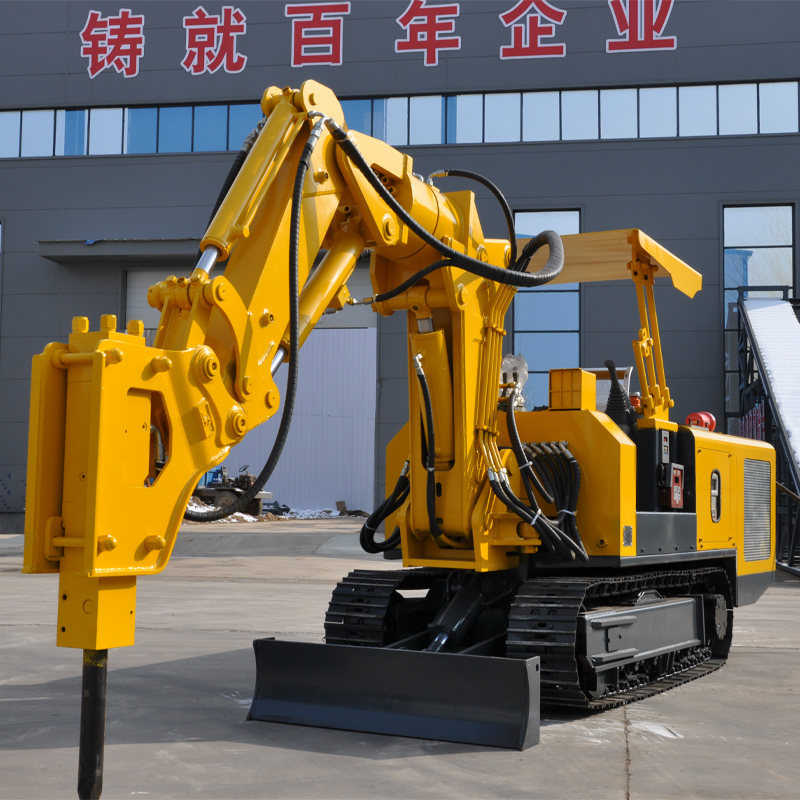

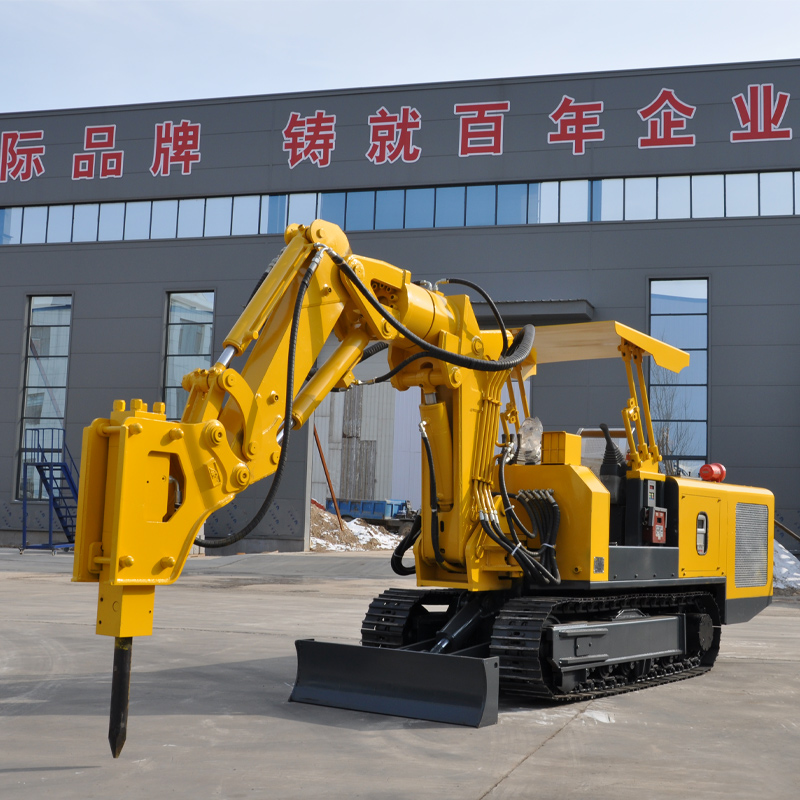

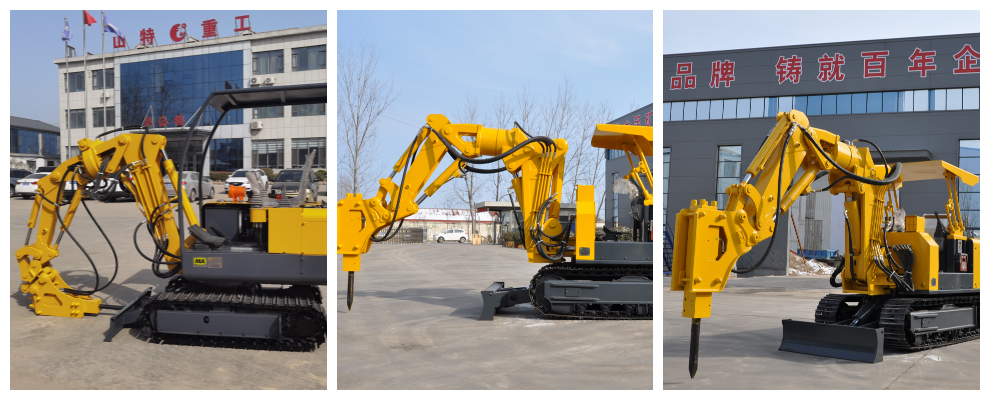

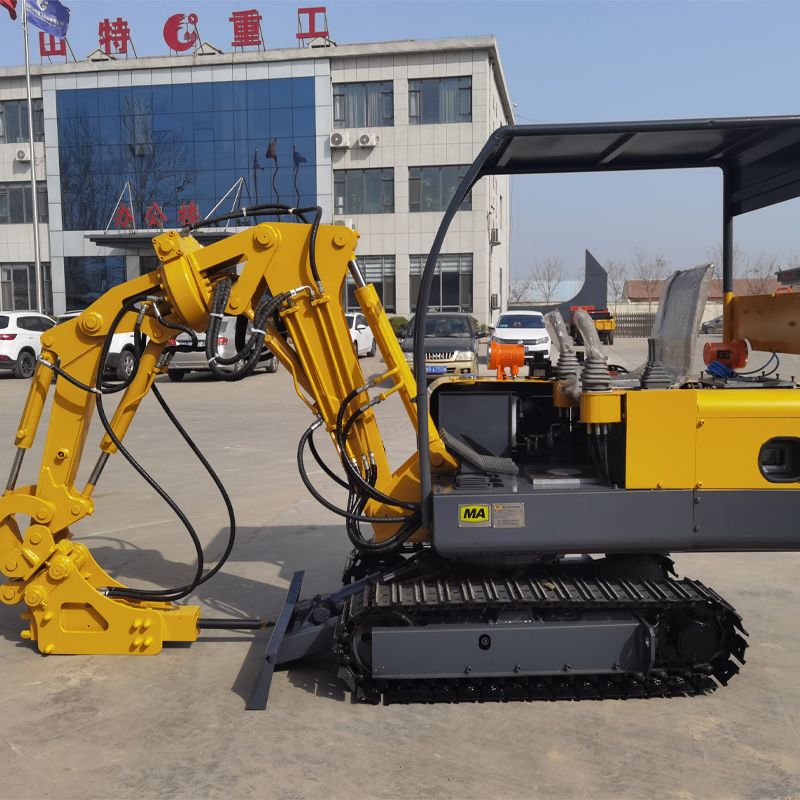

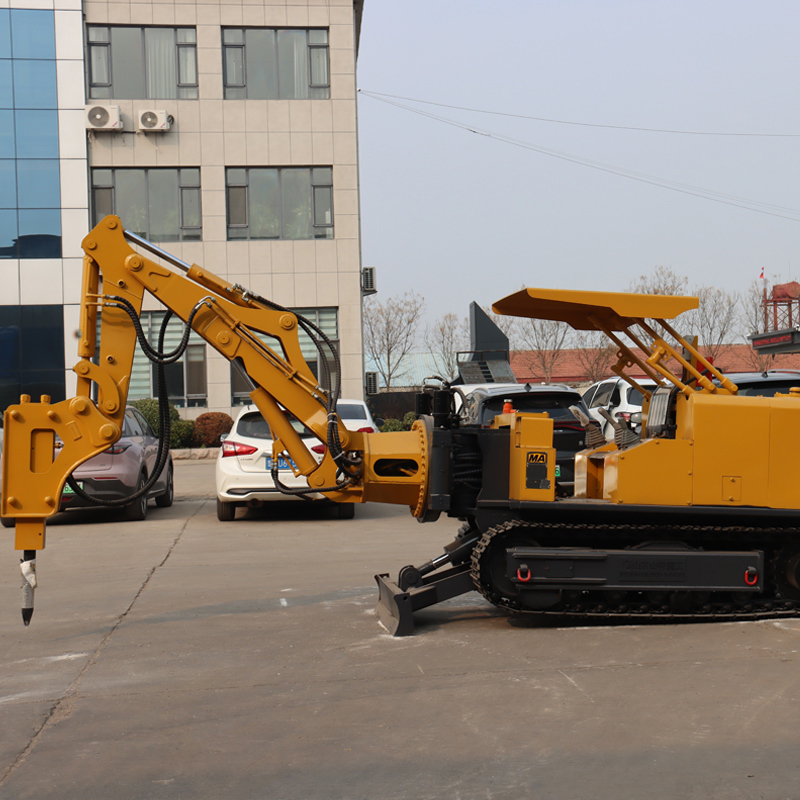

High Efficiency Roadway Repair Machine
Product Advantages:
This roadway repair machine features a compact design, energy efficiency, low noise levels, and high productivity, facilitating mechanized roadway repair operations and significantly enhancing repair speed.
The machine utilizes a unified power system with low energy consumption, integrating all power into a single module that drives one main pump and one auxiliary pump. Its advanced hydraulic system employs load-sensing variable displacement technology for precise control. The compact design features proportional pilot valves for smooth, shock-free operation and ease of handling.
Product Details
Product Introduction:
High Efficiency Roadway Repair Machine : Optimized for peak performance, this compact, low-noise repair system streamlines underground tunnel maintenance through advanced mechanization, delivering unmatched operational efficiency.
Core Features:

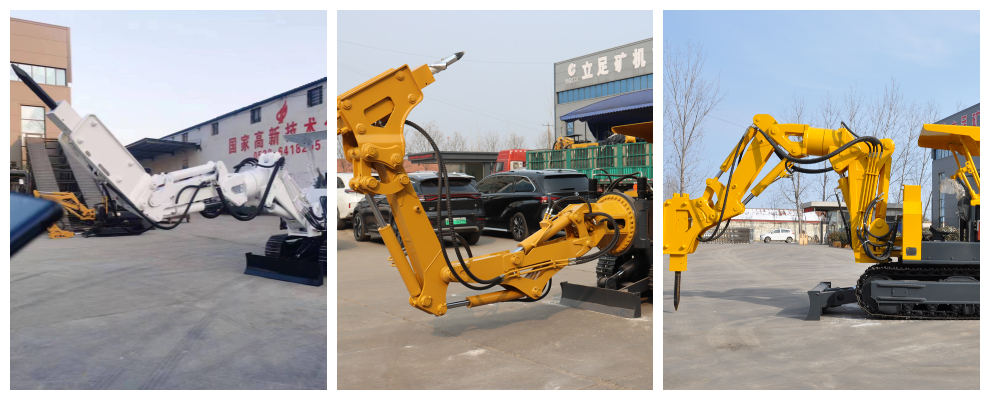

Multi-Tasking Articulated Arm
Executes ground-level lateral excavation and precision material displacement
Integrates six core functions: digging, pivoting, rock fracturing, load handling, elevation adjustment, and structural cutting (anchor rod modification)
Complete Maintenance Toolkit
Specialized beam manipulator for structural support installation/removal
Manages drainage channel formation, surface regularization, coal residue clearance, and conveyor zone sanitation
Performs auxiliary operations: compact component handling and localized material redistribution
Intelligent Hydraulic Architecture
Unified energy-efficient powerplant driving synchronized hydraulic circuits
Adaptive pressure-sensitive fluid dynamics with precision motion controls
Maintenance-optimized layout with rapid-service component access
Human-Focused Design
Fatigue-reduction cockpit with tactile control interfaces and body-support seating
Intuitive operational logic requiring minimal training
Fail-safe fluid network with directional flow optimization
Adaptive Worksite Configuration
Instant tool-swap compatibility for diverse surface treatment modes
Auxiliary hydraulic integration points for specialized attachments
Twin rear stabilizers for challenging terrain adaptation
Advanced Material Processing
High-efficiency demolition tool with optimized mass-to-impact ratio
Energy-recovery hydraulic circuits minimizing power dissipation
Simplified maintenance protocols
Smart Protection Matrix
Atmospheric Monitoring
Automated shutdown protocol for hazardous gas detection Multi-stage visual/auditory alerts for critical conditions
Fluid Safeguards
Thermal overload prevention and reservoir integrity monitoring
Collision Avoidance
Spatial awareness technology for worker proximity management
Remote Command
Secure wireless operation with system health diagnostics This engineering solution radically transforms underground maintenance workflows, eliminating manual-intensive processes through intelligent mechanization. Its modular configuration and adaptive tooling provide comprehensive solutions for excavation, material processing, and structural reinforcement, setting new standards in confined-space rehabilitation efficiency.
High Efficiency Roadway Repair Machine | |||||
Project | Unit | WPZ - 37/600L | WPZ - 55/900L | ||
Installed power | Kw | 37 | 55 | ||
Weight | Kg | 6500 | 7850 | ||
Form factor in the shipping state - (L×W×H) | mm | 5100×1200×2150 (1260( Uncovered) | 5800×1400×2300 (1550-2155(raised ceiling) | ||
Hydraulic system | The rated pressure of the hydraulic system | Mpa | 21.5/31.5 | 28/31.5 | |
Max flow of the hydraulic system | L/min | 110 | 130+30 | ||
Max temperature of hydraulic oil | ℃ | 75 | 75 | ||
Walking mechanism | The driving way of walking | / | Intergrated hydraulic motor reducer drive | Intergrated hydraulic motor reducer drive | |
The width of track board | mm | 300 | 450 | ||
Walking form | / | Crawler traveling | Crawler traveling | ||
Specific pressure to ground | mpa | ≤0.1 | ≤0.1 | ||
Traveling Speed | m/min | 26 | 28 | ||
Ground clearance | mm | 260 | 300 | ||
Climbing ability | ° | 14 | 14 | ||
Bucket loading | Working machine structure form | Three-section arms | Three-section arms | ||
Bucket capacity | m³ | 0.21 | 0.28 | ||
Max bucket digging force | KN | 37 | 50 | ||
Excavating Width | mm | ≥5250 | ≥7000 | ||
Excavating Distance | mm | ≥3450 | ≥3950 | ||
Excavating Height | mm | ≥4800 | ≥5300 | ||
Unloading Height | mm | ≥1800 | ≥2100 | ||
Excavating Depth | mm | ≥2450 | ≥2700 | ||
hydraulic breaker | Nominal working pressure | mpa | 11~14 | 12~15 | |
Max operating flow | L/min | 70 | 90 | ||
Impact frequency | rpm | 500~900 | 400-800 | ||
Impact energy | J | 600 | 900 | ||
Suitable Brazing tools specification | mm | 68 | 75 | ||
Noise | dB(A) | ≤120 | ≤120 | ||
Dozer blade | Blade width*H | mm | 1200×320 | 1400×400 | |
Proximity angle | ° | 12 | 14 | ||
Max digging depth | mm | 200 | 220 | ||
Machine turning radius | mm | ≤2700 | ≤3000 | ||
Max non-removable partsize(L*W*H) | mm | 3600×1200×1100 | 4000×1400×1200 | ||
Company Strength:

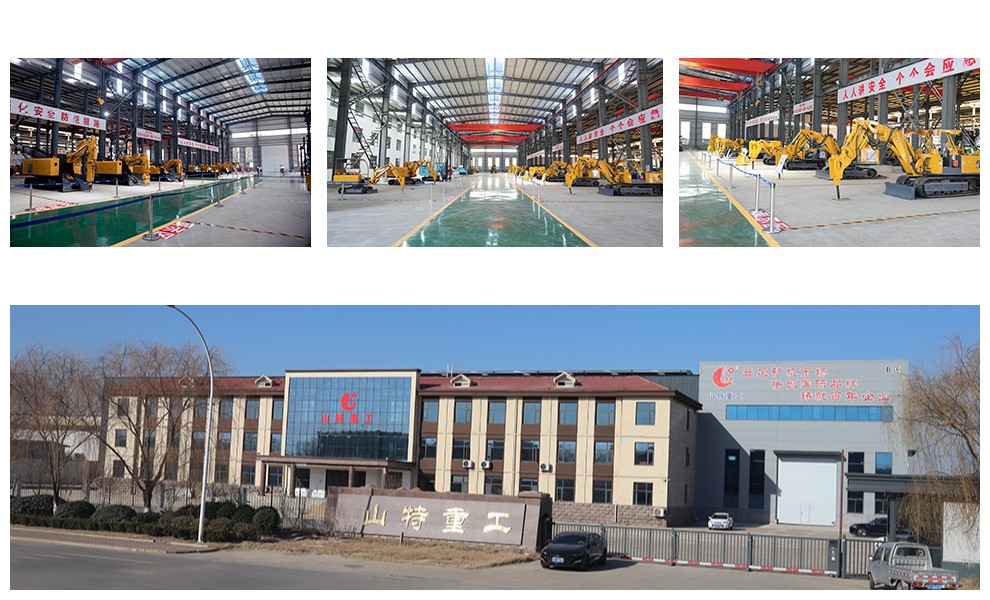

Founded in February 2009, Shandong Shante Heavy Industry Machinery Co., Ltd is a natural person wholly-owned enterprise engaged in research and development, production, manufacturing and sales of mechanical equipment in coal mines, water conservancy projects and non-coal mines. With an area of over 10 hectares, the company has four series of more than 20 varieties, mainly including mining electric excavators, mining slag extractors, digging transfer machines, coal unloaders, milling excavators, etc. Its products are widely used in coal and non-coal mines, water conservancy projects, railway construction and tunnel, culvert excavation, loading and unloading, transferring and stacking of railway port cargo. The domestic market covers 28 provinces, municipalities and autonomous regions. The products are exported to Russia, South America, Southeast Asia and Africa, and have served more than 30 countries and regions around the world. After more than ten years of efforts and development, the company has won the fame and become the lead in the domestic mining machinery industry. It has successively won the Certificate of National High-tech Enterprise, the Certificate of Coal Safety and Mine Safety issued by the Anbiao National Center for Mining Products Safety Sign, and has been rated as the Provincial/Municipal Advanced Enterprise, the Enterprise that Honors Contract and Keeps Promise and Provincial Civilized Unit for many years.
In addition, as the New Material Technology Incubation Center, Teaching and Experiment Base and Post-doctoral Innovation Practice Base of Shandong University, the company also acts as the Municipal Enterprise Technology Center and Municipal Key Laboratory. The company has a solid foundation of innovation, leading innovation ability in the industry, excellent service, honesty and trustworthiness, excellent product quality, and hence the continuous improvement of enterprise popularity and reputation is well expected. The annual output of various mining machinery is 3000 sets.
